Product Details:
|
| Usage: | Multifunctional, Stripping And Cutting | Product Name: | Cable Cutting Stripping Machine |
|---|---|---|---|
| Stripping Length: | Head 0 - 25mm Tail 0-25mm | Cutting Length: | 1mm-99999.99mm |
| Wire Available: | AWG#14-AWG32# | Max Catheter Diameter: | 5MM |
| Size: | 490*450*340mm | Weight: | 29KG |
| Productivity: | 4000pcs/H(L=100MM) | Warranty: | 3 Years |

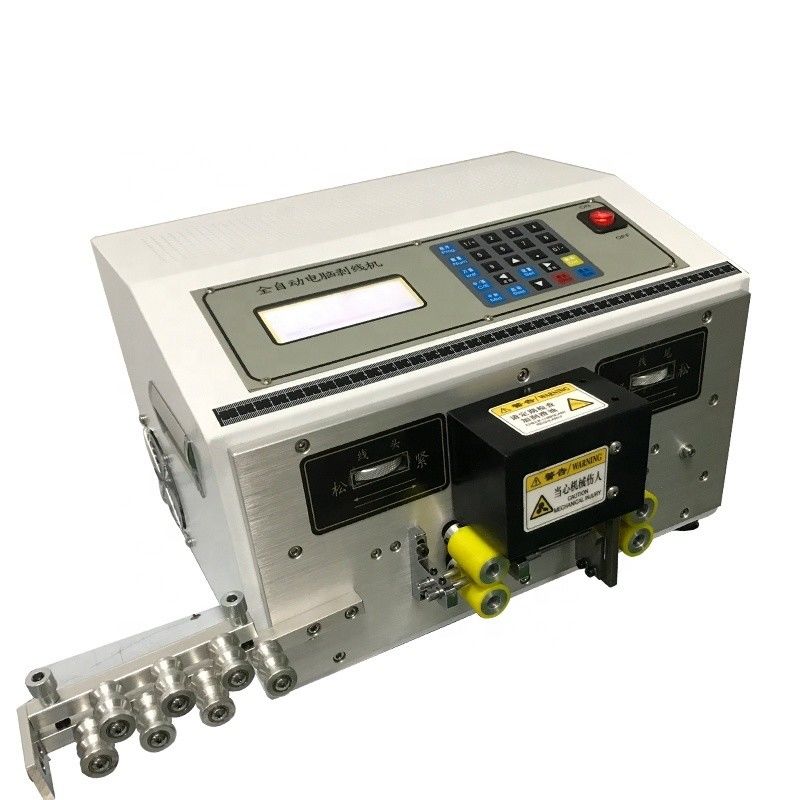

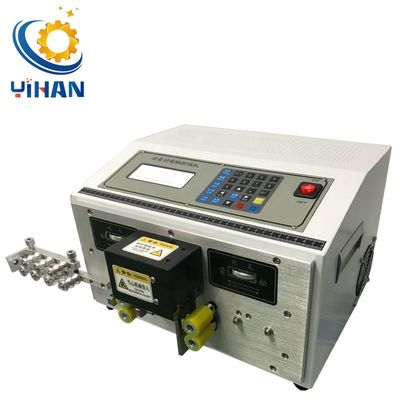

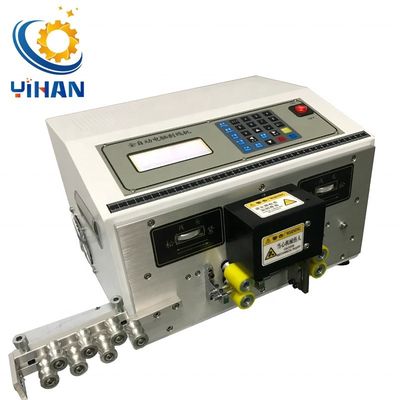

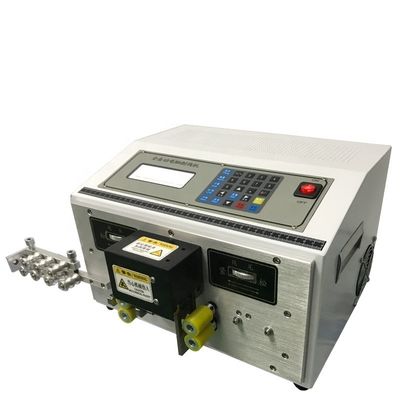

Automatic wire cutting and stripping machine thick wires wire cutting and stripping machine
Features:
2.Compatible with the general features of 330# wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.

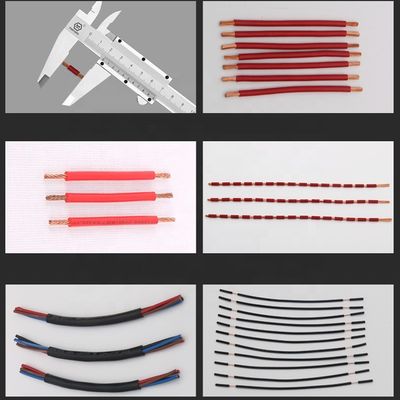

3.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping, twisting function once completed,can instantly transform wire specifications and dimensions,it’s very economic.
4.The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.
| Product Name | Automatic wires cutting stripping machine |
| Model | YH-800-03 |
| Dimension | 490*450*340mm |
| Weight | 29KG |
| Display method | Chinese or English interface display |
| Power supply | AC220/250V/50/60HZ |
| Capacity | 120-220W |
| Cutting length | 1mm-99999mm |
| Outer diameter | 0-6mm |
| Peeling length | Head0-100mm Tail0-80mm(According to the wire) |
| Applicable wire core area | Max outer diameter 6mm |
| Productivity | 2000-4000pcs/h(according to the cutting length) |
| Tool Material | Tungsten steel / white steel |
| Drive mode | Four simultaneously drive |
| Stripping Mode | Long wire/ short wire /Multi-stripping / multi stripping |
