Product Details:
|
| Usage: | Cutting & Stripping, Stripping And Cutting | Stripping Length: | Head 0 - 25mm Tail 0-60mm |
|---|---|---|---|
| Cutting Length: | 1mm-99999.99mm | Catheter Diameter: | 1.5-5MM |
| Wire Range: | 0.1-4.5mm2 (AWG11-AWG32) | Size: | 430*350*350 |
| Weight: | 35KG | Power: | 220V 50-60HZ |
| Application: | Wire Processing | Warranty: | 12 Months |

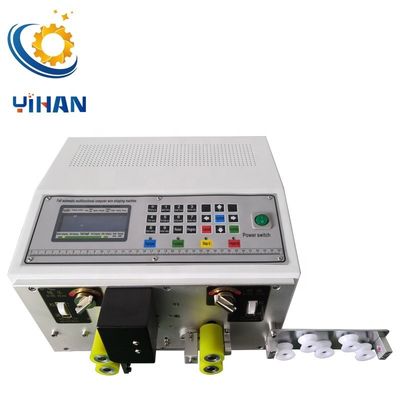

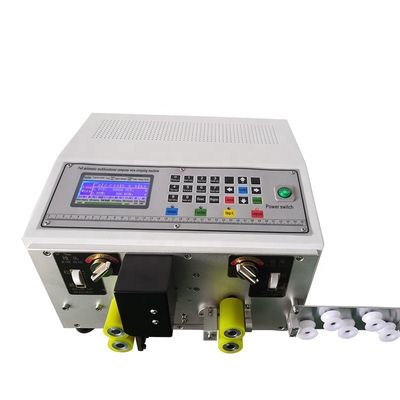

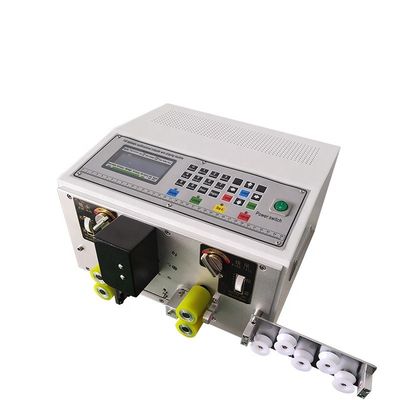

YH-845 Wire Cutting Stripping Machine Wholesale electric Wire stripper cutter machinery factory
Features:
2.Compatible with the general features of 330# wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.
3.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping, twisting function once completed,can instantly transform wire specifications and dimensions,it’s very economic.
4.The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.
| Product Name | Automatic wires cutting stripping machine |
| Model | YH-845 |
| Dimension | 450*350*350mm |
| Net Weight | 35KG |
| Display method | Chinese or English interface display |
| Power supply | AC220/250V/50/60HZ |
| Capacity | 120-220W |
| Cutting length | 1mm-99999mm |
| Cutting Tolerance | Adjustable |
| Peeling length | Head 0-25mm ,Tail 0-60mm (According to the wire) |
| Applicable wire core area | 0.1-4.0mm2 (AWG12-AWG32) |
| Productivity | 3000-6000pcs/h(according to the cutting length) |
| Tool Material | Tungsten steel / high speed steel |
| Drive mode | Four simultaneously drive |
| Stripping Mode | Long wire/ short wire /Multi-stripping / multi stripping |
