Product Details:
|
| Usage: | Stripping | Type: | YH-8030H |
|---|---|---|---|
| Outer Stripping Length(sheath): | 10-120mm | Stripping Length(core-sheath): | Head 1-120mm,tail 1-80mm |
| Stripping Range: | 3-10MM (with 6 Cores Or Less Sheathed Wire) | Cutting Length: | 1-9999.9mm |
| Size: | 840*540*610 Mm | Weight: | 120kg |
| Display Method: | Chinese Or English Interface Display | Power Supply: | AC220V/110V/50HZ/60HZ |
| Pressure: | 0.4-0.6Mpa |

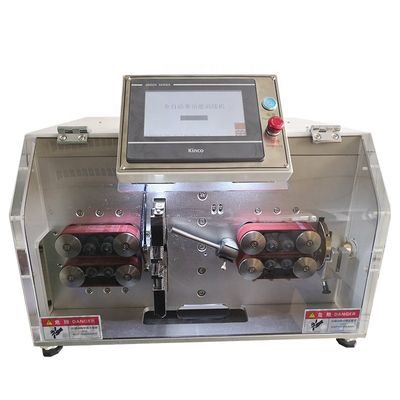

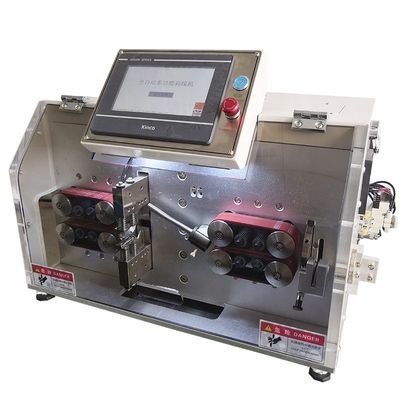

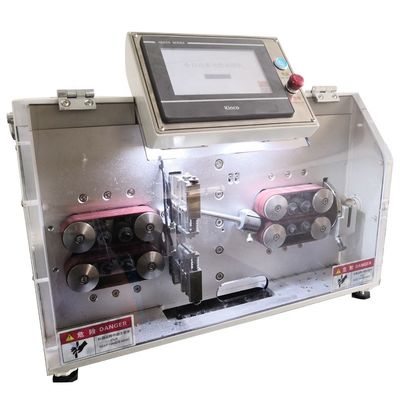

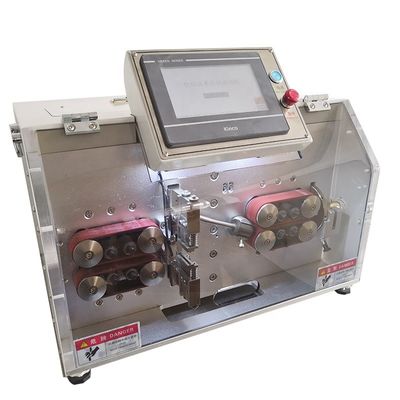

Sheathed cable inside and outside peeling and cutting machine
| Model | YH-8030H |
| Machine Dimension | 600mm×500mm×400mm |
| Packed Weight | 125kg |
| Display method | 7-inch touch screen ,Chinese or English interface display |
| Power supply | AC220/110V/60/50Hz |
| Outer diameter | 4-10mm |
| Outer Stripping length(sheath) | 10-120mm |
| Stripping length(core-sheath) | head: 1-120mm Tail:1-80mm |
| Cutting length | 1-9999.9mm |
| Cutting precision | ± 0.002*L |
| Productivity | 300-1000pcs/h(according to the cutting length) |
| Applicable wire | Two core,three-core,four-core,five-core,six-core power line |
| Pressure | 0.4-0.6Mpa |
| Mode | Motor ball screw drive |
| Storage capacity | 60 kinds of data cable processing |
| Working environment | 0-45 degrees,dry vibration-free work bench |
| Blade material | 4 pcs of imports high speed steet |
