Product Details:
|
| Usage: | Stripping | Wire Range: | 32AWG-18AWG |
|---|---|---|---|
| Function: | Stripping Wire | Stripping Length: | 3-25mm |
| Wire Diameter: | Max4mm | Power: | 220V/110V |
| Air Pressure: | 3-7kgcm 2 | Weight: | 10.5kg |
| Size: | 260*180*280mm | Warranty: | 1 Year |
| After-sales Service: | Online Support |

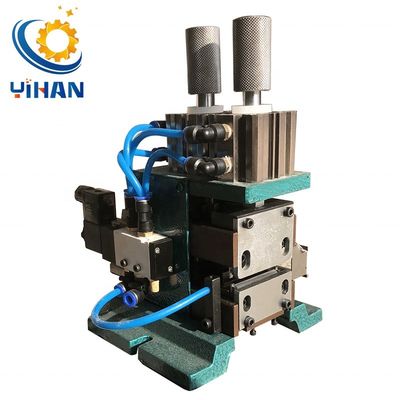

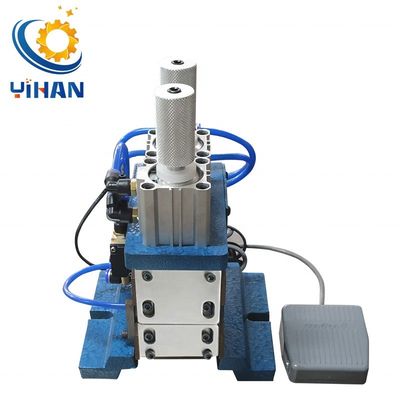

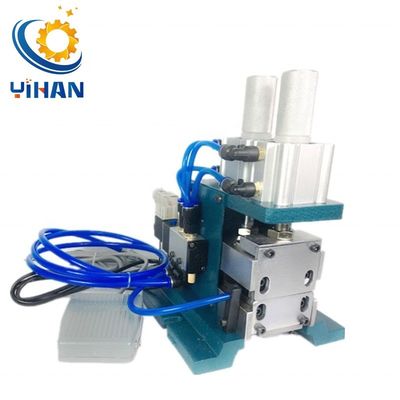

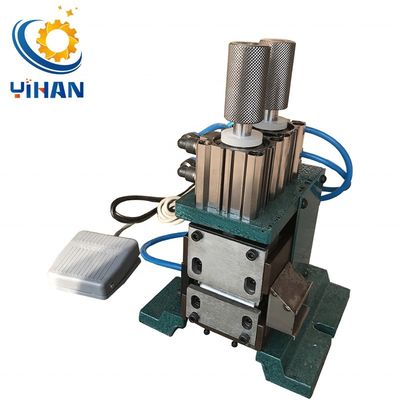

3F core stripping machine is designed for automatic clamping and stripping, which reduces the working intensity of operators and has high efficiency.
3F core-peeling machine is widely used for peeling the internal core wire of data wire.Good quality and high yield
| Available Wire Cross-Section Range: | 0.1-2.0mm2(18AWG-32AWG) |
| Stripping Length: | 3-25mm |
| Torsion stripping capacity: | 1-10 pieces/time,depending on the wire |
| Voltage: | AC 110V/220V 50-60HZ |
| Air Supply: | 0.3-0.7Mpa |
| Weight: | 11KG |
| Size: | 260*150*270MM |
| Note: We are a wiring harness processing equipment factory and support one piece customization | |
| Model | YH-3F | YH-4F | YH-3FN | YH-4FN |
| Photo | | | | |
| Wire Range | 18AWG-32AWG | 14AWG-32AWG | 18AWG-32AWG | 14AWG-32AWG |
| Stripping Length | 3-25MM | 3-25MM | 3-25MM | 3-25MM |
| Air Supply | 0.3-0.7Mpa | 0.3-0.7Mpa | 0.3-0.7Mpa | 0.3-0.7Mpa |
| Fuction | Peeling | Peeling | Peeling and Twisting | Peeling and Twisting |
| Torsion Stripping Capacity | 1-10 piieces/time, depengding on the wire | 1-10 piieces/time, depengding on the wire | 1-10 piieces/time, depengding on the wire | 1-10 piieces/time, depengding on the wire |
| Weight | 11KG | 14KG | 13KG | 14KG |
| Size | 330*190*270mm | 330*240*330mm | 330*240*290mm | 330*400*345mm |
]
