Product Details:
|
| Usage: | Cutting & Stripping & Splitting | Name: | Cutting Stripping Sub-line Machine |
|---|---|---|---|
| Suitable Wire: | Flat Cable,winding Displacement,double Lines,speaker Cable | Cutting Tolerance: | 0.2+0.002*L) |
| Max Width Range: | Flat Cable Branching Wire 12P | Stripping Length: | Head 0 - 25mm ,End 0-15mm |
| Cutting Length: | 0.1mm-999999.9mm | Splitting Length: | 30/60mm(Custom) |
| Power Supply: | AC220V/50HZ/60HZ | Speed: | 3000-7000pcs/h |
| Size: | 470mm*450mm*340mm | Port: | Shenzhen |
![]()
![]()
![]()

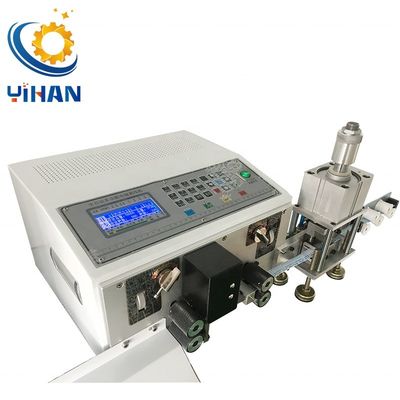

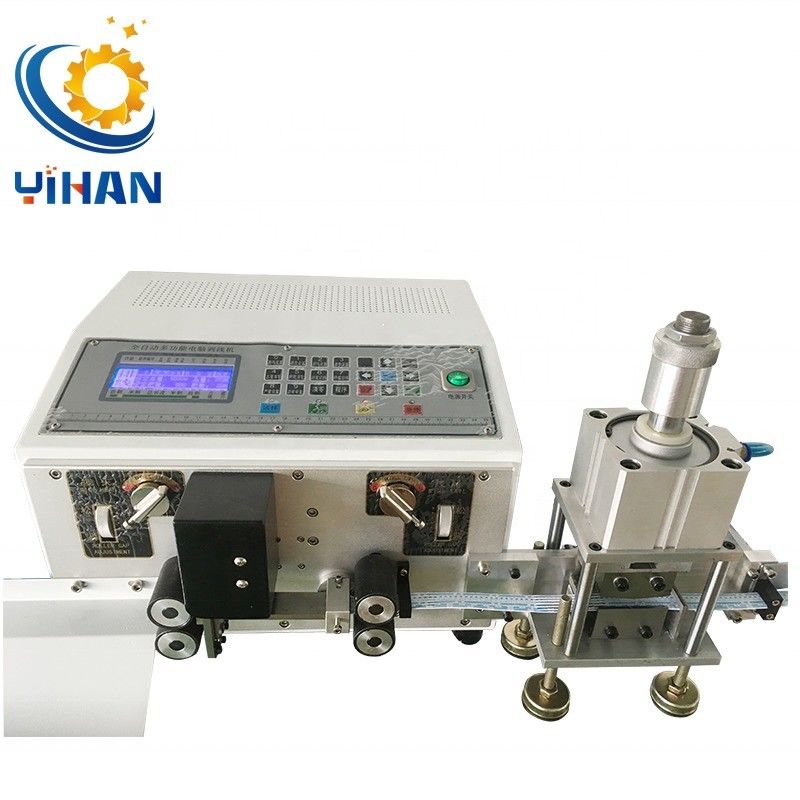

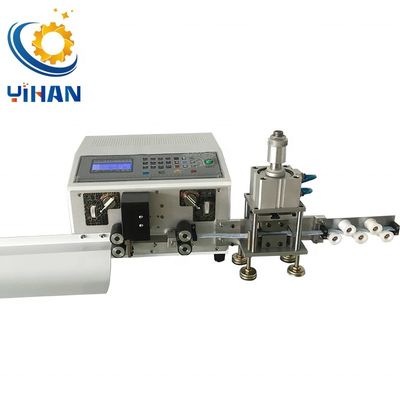

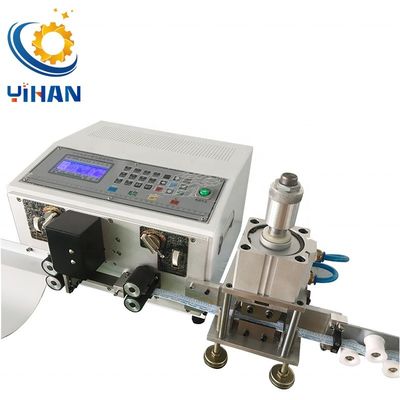

Automatic computer cable line cutting and stripping machine
Features Introduction:
| Type | YH-PX480 |
| Size | 470mm×450mm×340mm |
| Weight | 45kg |
| Display method | Chinese or English interface displa |
| Power supply | AC220/50Hz |
| Capacity | 420W |
| Cutting length | 1mm---99999mm |
| Split length | 30mm(Custom) |
| Peeling length | Head 0-25mm,Tail 0-25mm |
| Applicable wire core area | 32#-14#,cable 2P-12P |

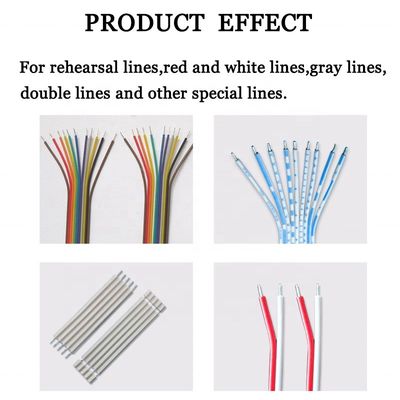

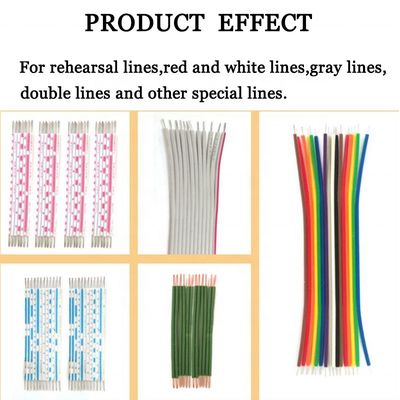

| Applicable wire | Cable, electronic wire, double to combine wire, parallel wires, RVV wire, etc. |
| Tool Material | Tungsten steel / white steel |
| Stripping speed: | Fast |
| Cable outer diameter | Adjustable |
| Stripping quality | Excellent |
| Decimal precision | Yes |
| Drive mode | Four simultaneously drive |
| Stripping pressure adjustment | Adjustable |
| Speed adjustment | 0-9 |
| Stripping Mode | long wire/ short wire / semi-stripping / multi-stage stripping / cable/trunking |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
