Product Details:
|
| Usage: | Multifunctional, Bending Stripping And Cutting | Product Name: | Wire Bending Machine |
|---|---|---|---|
| Stripping Range: | 0.1-16.0 Mm2 BVV Cable | Stripping Length: | Head 0 - 35mm Tail 0-30mm |
| Cutting Length: | 1mm-99999.99mm | Catheter Diameter: | 1.5-10MM |
| Size: | 530*470*340 | Weight: | 70KG |
| Number Of Bending: | 10 (can Add) | Bending Length: | Can Adjust |

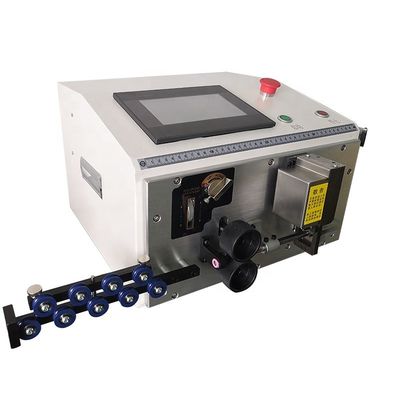

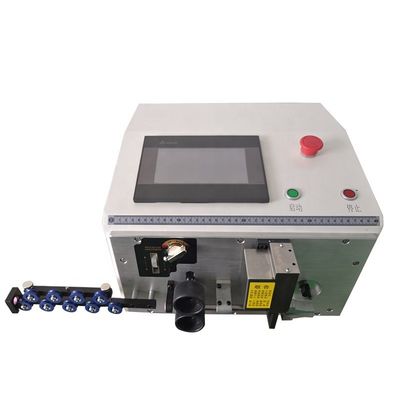

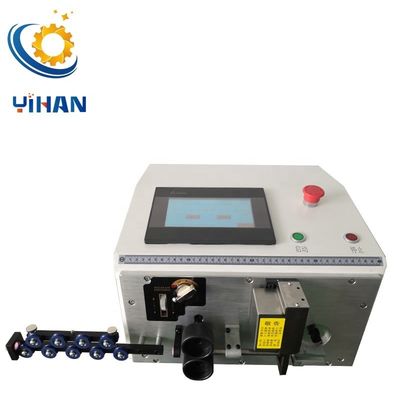

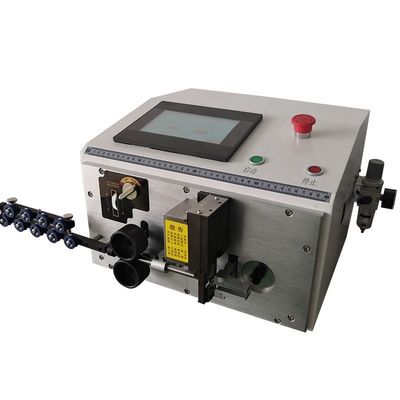

YH-16W Automatic BVV cable bending stripping cutting machine
Description:
| Product Name | Automatic wire bending machine |
| Model | YH-W16 |
| Dimension | 600*550*450mm |
| Weight | 68KG |
| Display method | Chinese or English interface display |
| Power supply | AC220/250V/50/60HZ |
| Capacity | 180-600W |
| Cutting length | 1mm-99999mm |
| Cutting Tolerance | Adjustable |
| Peeling length | 1.0mm-999.9mm(According to the wire) |
| Wire range | 0.1-16.0mm2 BV hard wire cutting stripping and bending |
| Number of bending | 10 times(more than 10 times is optional) |
| Productivity | 800-1500pcs/h(according to the cutting length) |
| Cutting tolerances | ±( 0.002* L : indicates a cutting length. |
| Drive mode | Four simultaneously drive |
| Bending way | Clockwise and counterclockwise,adjustable bending degree,30 degrees,45 degree, 60 degrees,90 degrees,positive and negative two bending in one line |
| Air supply | 0.5-0.75MP |
