Product Details:
|
| Usage: | Stripping & Cutting | Wire Cross-section: | 0.1-2.5mm2 |
|---|---|---|---|
| AWG Size: | AWG14-32 | Stripping Length: | Head 0-15mm,Tail 0-15mm |
| Warranty: | 12 Months | Power: | 220V/110V |
| Driver Mode: | 4 Wheels Driver | Weight: | 28 Kg |
| Size: | 540*500*380 Mm | Display Method: | Chinese Or English |

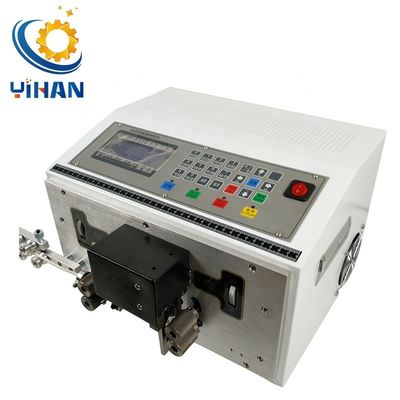

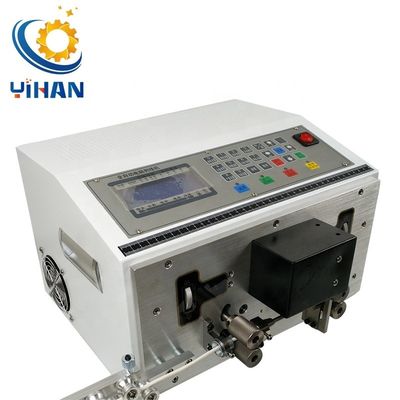

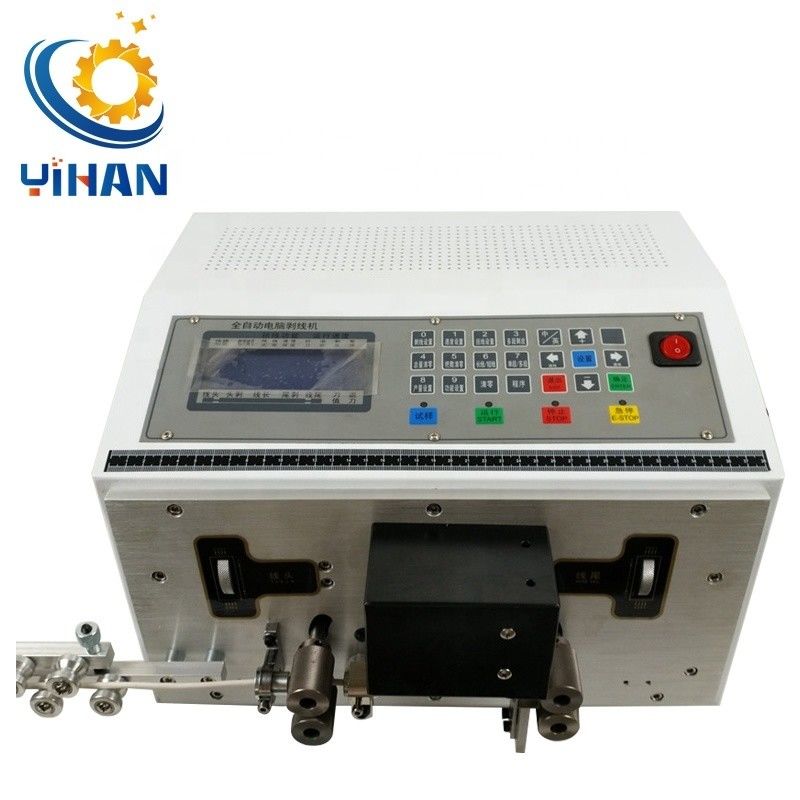

Mode:YH-800-02
Automatic Full Computer Wire Stripping Machine adopt the advanced automation technology from Japan,Taiwan.
It is a kind of numerical control equipment
Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and othervarious products of wire processing.
Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.
| Available Wire Cross-Section Range: | 0.1-2.5mm2(16AWG-32AWG) |
| Conduit Diameter: | 5mm |
| Cutting Length: | 1-99999mm |
| Cutting Tolerance: | ±(0.002*L)(L=Cutting Length) |
| Stripping Length: | Hend 0-15mm, Tail 0-15mm |

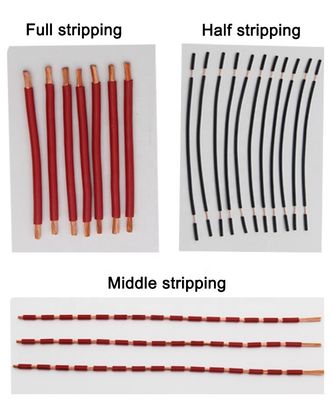

| Middle Stripping Section: | Max 15 |
| Speed: | 3000-8000pcs/h |
| Display Way | English LCD Display |
| Drive Mode | 4 Wheels Drive |
| Blade Material: | High Speed Steel |
| Appropriate Wire | Small electrical wires,PVC tubes,PVC tubes |
| Power Supply: | 220V/50HZ 110V/60HZ(Customized) |
| Power Rating | 200W |
| Size | 560*520*480mm |
| Weight | 29KG |
