Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling

Certification
China Yihan (shenzhen) Automation Equipment Co., Ltd. certification
China Yihan (shenzhen) Automation Equipment Co., Ltd. certification
I'm Online Chat Now

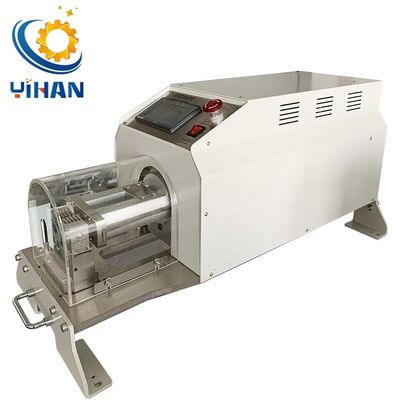

Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling

Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling
Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling

Large Image :  Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling

Product Details:
Place of Origin: Guangdong, China
Brand Name: Yihan
Model Number: YH-100HW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,200.00/sets 1-4 sets
Packaging Details: wooden package
Supply Ability: 500 Set/Sets per Month

Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling

Description
Usage: Stripping, Stripping Product Name: Type Pneumatic Rotatory Blade Wire Rotary Stripping Peeling Machine
Peeling Method: Rotary Peeling Stripping Length: 0-100mm
Line Diameter Range: 10mm-25mm Power Supply: 220V 50HZ/60HZ /200W
Air Pressure: 0.5-0.7Mpa Speed: 20-40pc/min
Size: 1000*450*350mm Weight: 80kg
Port: Shenzhen

Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 0Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 1Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 2

♣  Adopt specific axis positioning and advanced rotary tool holder to improve accuracy and speed
♣  Chinese interface, accurate and fast debugging parameters, manual induction menu dialogue control system, easy to set each function
♣ Double blades are used, no need to be corrected for replacement, and the machining center is automatically located, making the production
The rate has been greatly increased by several times
♣ Automatic centering, motor drive, program control of tightening force, the equipment displays the cutting wire diameter through digital
♣ Using high-quality imported pneumatic components, more energy-saving and more stable/durable

Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 3

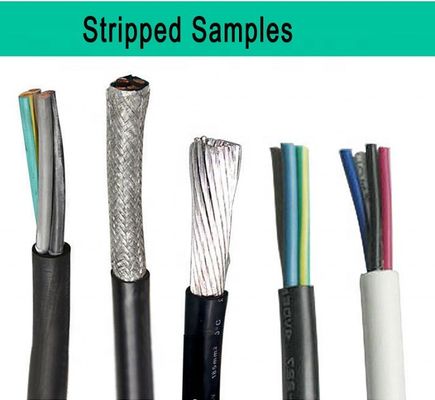

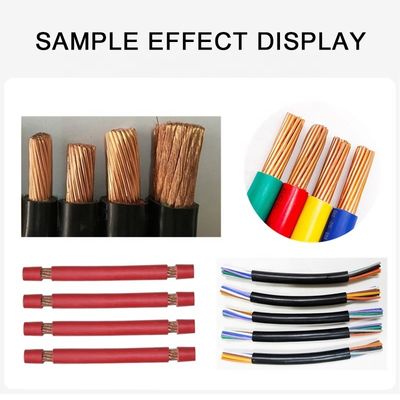

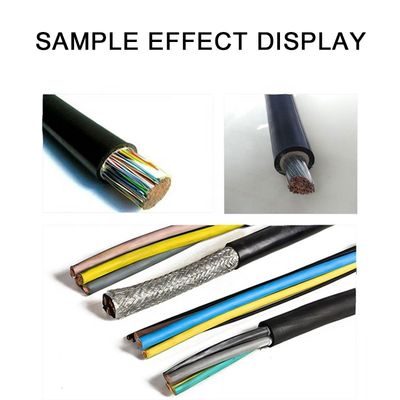

Suitable for stripping single-strand flexible wires, multi-strand flexible wires, hard wires, sheathed wires, etc.



Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 4



Model YH-100W YH-200W YH-300W
Voltage 220V 50-60HZ
Power 200W 200W 300W
Peeling length 0-100MM 0-200MM 0-300MM
Wire diameter

ø10-ø25MM

ø10-ø25MM ø10-ø50MM
Peeling method Rotary peeling
Air pressure 0.5-0.7Mpa
Speed 20-40 pcs/min 20-40 pcs/min 10-30 pcs/min
Size 1000*450*350mm 1000*450*350mm 1400*330*420mm
Weight 80kg 80kg 110kg

Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 5

Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 6Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 7Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 8Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 9Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 10Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 11Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 12Wire Cable Stripper Tool for Machinery Rotatory Knife Blade Stripping and Peeling 13

1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.



2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery



3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples



4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication



5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.

6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund within 7 days after customer received product(customer need to pay for the Return shipping fee
