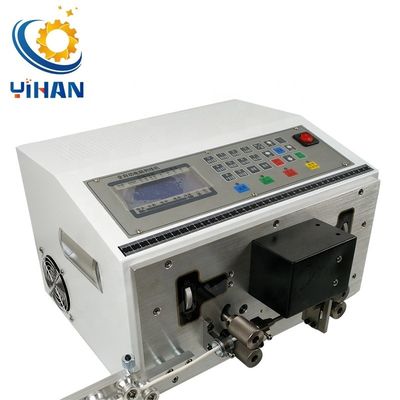

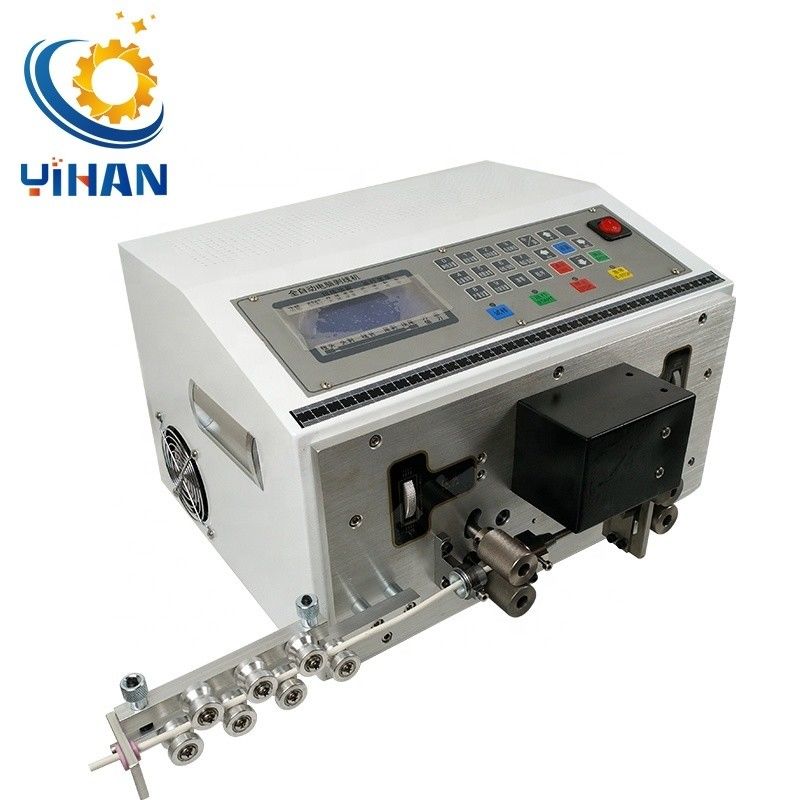

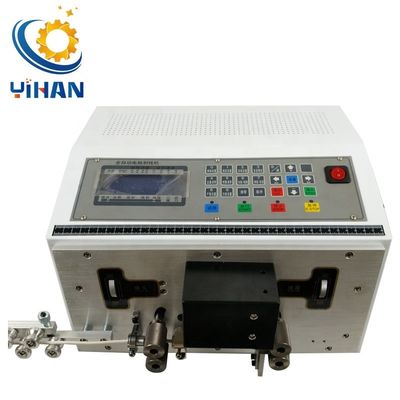

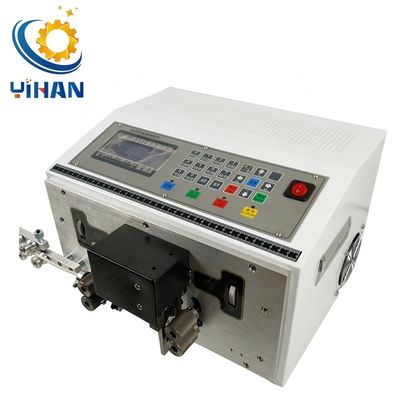

High Speed Electrical Copper Wire Cable Cutting Stripping Machine YH-800-02 Automatic

Automatic Full Computer Wire Stripping Machine adopt the advanced automation  technology from Japan,Taiwan.

It is a kind of numerical control equipment.

Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and othervarious products of wire processing.
Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.

Model	YH-800-02	YH-800-02D	YH-800-04	YH-800-04D
Wire Range	0.1-2.5mm2	0.1-1.5mm2 (2 Wire)	0.1-4.5mm2	0.1-2.5mm2 (2 wire)
OD of Wire	Φ3.5mm	Φ2.5mm(2 wire)	Φ4.5mm	Φ3.5mm(2 wire)
Stripping Length	Head 0-15 mm	Head 0-15 mm	Head 0-15 mm	Head 0-15 mm
	Tail 0-50 mm	Tail 0-50 mm	Tail 0-50 mm	Tail 0-50 mm
Cutting Length	1-99999mm	1-99999mm	1-99999mm	1-99999mm
Avaible Wire	Single Wires	Double Wire	Single Wires	Double Wire

Model	YH-800-08	YH-800-08D	YH-800-10	YH-800-16
Wire Range	0.1-8mm2	0.1-4mm2(2 wire)	0.2-10mm2	0.2-16mm2
OD 0f Wire	Φ5.5mm	Φ4mm(2 wire)	Φ7mm	Φ8mm
Stripping Length	Head 0-15mm	Head 0-15mm	Head 0-15mm	Head 0-15mm
	Tail 0-15mm	Tail 0-15mm	Tail 0-15mm	Tail 0-15mm
Cutting Length	1-99999mm	1-99999mm	1-99999mm	1-99999mm
Available Wire	Single Wire	Double Wire	Single Wire	Single WIre

1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.

2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery

3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples

4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication

5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.

6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund within 7 days after customer received product(customer need to pay for the Return shipping fee
