Product Details:
|
| Usage: | Stripping & Cutting | Wire Width: | 1-6.5mm |
|---|---|---|---|
| Stripping Length: | Outside 0-100mm,Inside 0-20mm | Warranty: | 12 Months |
| Cutting Length: | 1mm-99999.99mm | Power: | 220V/110V |
| Driver Mode: | 4 Wheels Driver | Weight: | 30 Kg |
| Size: | 540*500*380 Mm | Display Method: | Chinese Or English |

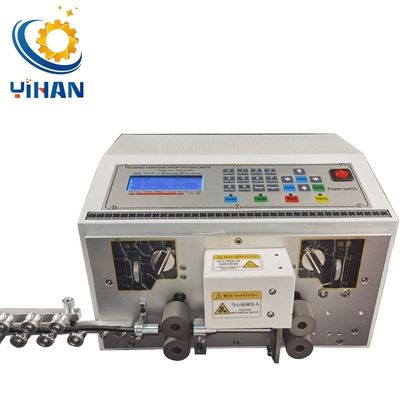

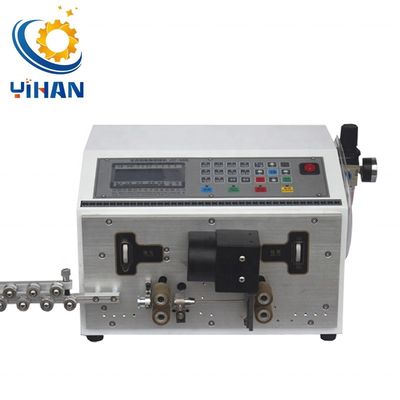

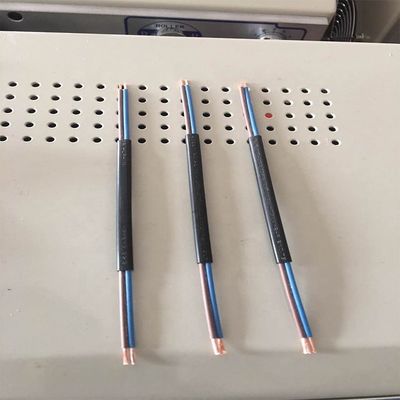

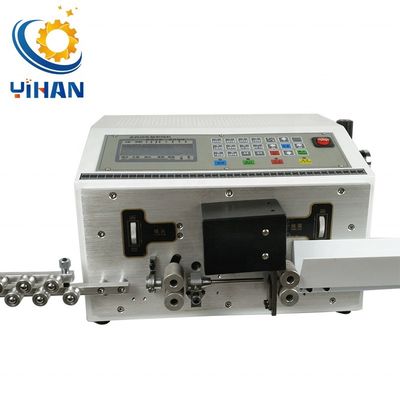

Flat Sheath Machine Automatic Flat Sheated Wire inside and outside Cutting Stripping Machine for Wire width Within 6mm
Model:YH-800-H07
Automatic Full Computer Wire Stripping Machine adopt the advanced automation technology from Japan,Taiwan.
It is a kind of numerical control equipment.
Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and othervarious products of wire processing.
Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.
| Available Wire Width : | 1-6.5mm |
| Max Conduit Diameter: | 8mm |
| Cutting Length: | 1-99999mm |
| Cutting Tolerance: | ±(0.002*L)(L=Cutting Length) |
| Stripping Length: | Outside 0-100mm, Inside 0-20mm |
| Middle Stripping Section: | Max 15 |
| Speed: | 2000-3000pcs/h |
| Display Way: | English LCD Display |
| Drive Mode: | 4 Wheels Drive |
| Blade Material: | High Speed Steel |

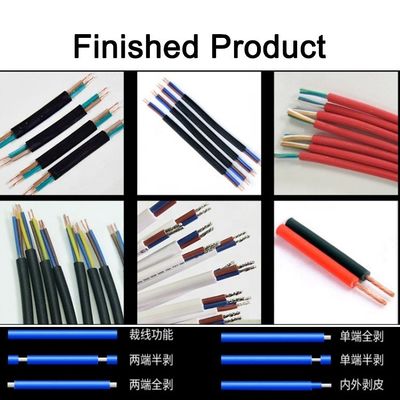

| Appropriate Wire: | Flat sheathed Multi-core Wire ,Single WirePVC tubes,PVC tubes |
| Power Supply: | 220V/50HZ 110V/60HZ(Customized) |
| Power Rating: | 250W |
| Size: | 560*520*480mm |
| Weight: | 32KG |
| Model | YH-800-H06 | YH-800-H08 | YH-800-H10 | YH-800-H12 |
| Photo | | | | |
| Multi-core Wire OD Range | 1-6MM | 1-8MM | 2-10MM | 3-12MM |
| OD of Feeding | Φ8 | Φ10 | Φ12 | Φ14 |
| Stripping Length | Head 0-100mm | Head 0-100 mm | Head 0-100 mm | Head 0-100mm |
| Tail 0-80 mm | Tail 0-80 mm | Tail 0-80 mm | Tail 0-80mm | |
| Cutting Length | 1-99999mm | 1-99999mm | 1-99999mm | 1-99999mm |
| Avaible Wire | Multi-core Wire, 0.5-4MM2 BVR Wires | Multi-core Wire, 0.5-6mm2 BVR Wires | Multi-core Wire, 0.5-10mm2 BVR Wires | Multi-core Wire, 1.0-16MM2 BVR Wire |
| Model | YH-800-H12D | YH-800-H16D | We can produce the machine according to customer's requirement
|
| Photo | | | |
| Multi-core Wire OD Range | 3-12MM | 3-16MM | |
| OD 0f Feeding | Φ14 | Φ18 | |
| Stripping Length | Head 150-300mm | Head 150-500mm | |
| Tail 0-120mm | Tail 0-120mm | ||
| Cutting Length | 1-99999mm | 1-99999mm | |
| Available Wire | Multi-core Wire, 0.5-16MM2 BVR Wire | Multi-core Wire, 0.1-25mm2 BVR Wire |
