Product Details:
|
| Usage: | Cutting & Stripping, Stripping And Cutting | Application: | Single-core Wire |
|---|---|---|---|
| Stripping Length: | Head 0 - 25mm Tail 0-100mm | Cutting Length: | 1mm-99999.99mm |
| Stripping Range: | 0.1-4.5 Mm2 BVR Wire | Catheter Diameter: | 1.5-5MM |
| Size: | 400*300*330 | Weight: | 29KG |
| Keywords: | Cutting | After-sales Service: | On-line Support |
The machine uses high-definition LCD touch screen operation, Chinese and English one-key switch, convenient and quick operation
Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping, twisting function once completed,can instantly transform wire specifications and dimensions,it’s very economic.

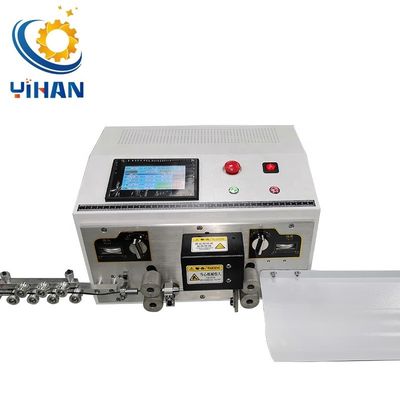

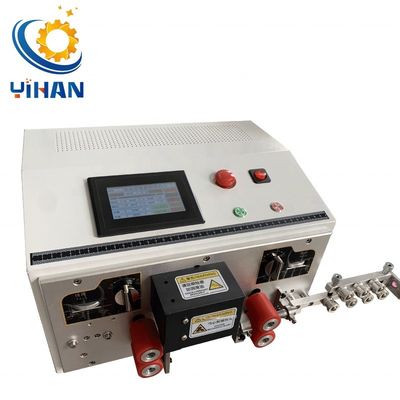

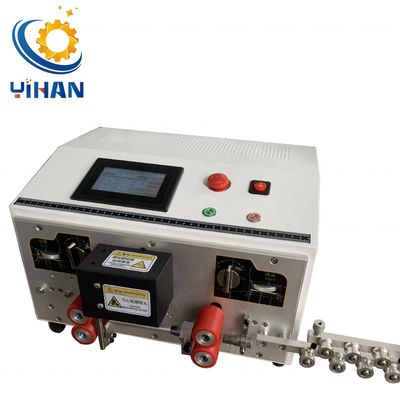

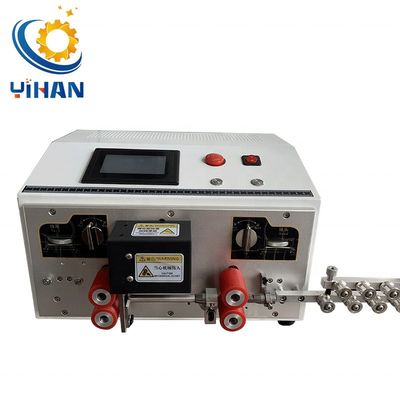

| Product Name | Automatic wires cutting stripping machine |
| Model | YH-900-04 |
| Dimension | 400*300*330mm |
| Weight | 29KG |
| Display method | Chinese or English interface display |
| Power supply | AC220/250V/50/60HZ |
| Capacity | 120-220W |
| Cutting length | 1mm-99999mm |
| Stripping length | Head 0-25MM Tail 0-100MM |
| Applicable wire core area | 0.1-4.5mm2(AWG12#-AWG32#) |
| Inlet direction: | Left and right optional |
| Productivity | 3000-5000pcs/h(according to the cutting length) |
| Tool Material | high speed steel |
| Drive mode | Four simultaneously drive |
| Stripping Mode | Long wire/ short wire /Multi-stripping / multi stripping |
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund within 7 days after customer received product(customer need to pay for the Return shipping fee
