Product Details:
|
| Usage: | WINDING | Applicable Wire Diameter: | ≤6.2MM |
|---|---|---|---|
| Final Circle Diameter: | <45mm | Head Length: | 0-100mm |
| Tail Length: | <500mm | Size: | 1000*1200*1800mm |
| Suitable Length: | 6000mm | Function: | Wire Winding |
| Voltage: | 220V 50-60HZ | Warranty: | One Year |
| After-sales Service: | On-line Support | Port: | Shenzhen |

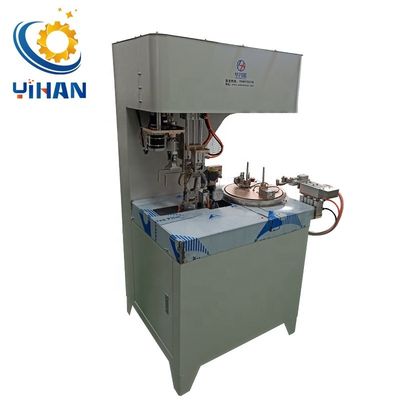

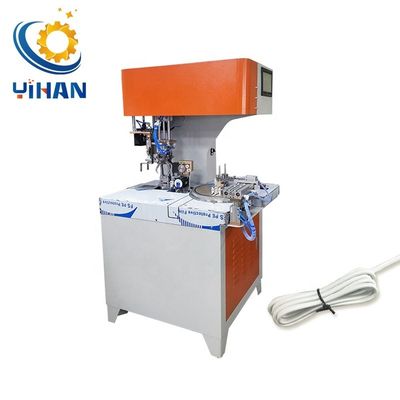

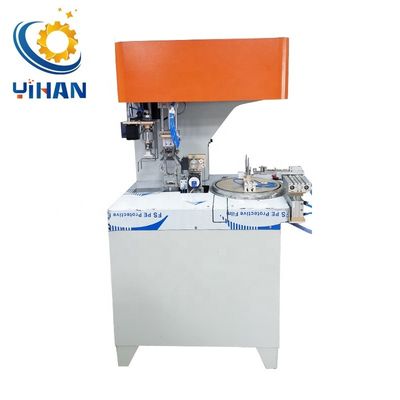

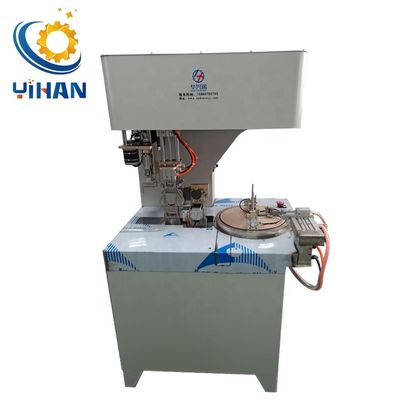

YH-DL-BM8 Automatic 8 Shape Wire Winding and Tying Machine for Thick Wires
Used for:
AC power cord, DC power cord, headphones line, audio line, USB cable, the video line, HDMI HD line, etc all kinds of the transmission line with plastic bags core twisted into the beam, also can be used on other tapes to use packet core sealing glue.
Please contact us for customization.
If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
And if you need fully automatic twist tie machine, please contact us too.
FEATURE:
1. Cable tie machine can automatically wind and tie the power cable, AC/DC cable, earphone cord and the wire used by the computer
2. The machine solves the problems caused by hand-tie, and also improve the working efficiency.
3. The machine can cooperate with X-28T the higher use
4. long time use cable tie machine
5. twisting the cable automatically
6. reasonable price and good quality
7. easy to operate
| Modle | YH-DL-BM8 |
| Function | 8 shapes wire winding and tying |

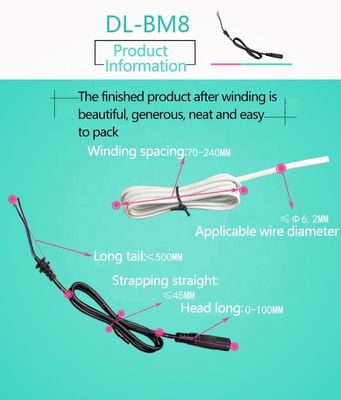

| Winding appearance | 8 shape one tie |
| Applicable wire diameter | ≤6.2MM |
| Final circle diameter | <45mm |
| Theoretical yield | ≤1800pcs/H |
| Center distance | 70-240mm |
| Head length | 0-100mm |
| Tail length | ≤500mm |
| Applicable cable tie | Plastic coated iron core |
| Pressure requirements | 0.4-0.55Mpa |
| Size | 1200*800*1400mm |
| Weight | 150KG |
