Product Details:
|
| Usage: | Stripping & Cutting | Power: | AC220/50Hz AC110/60Hz |
|---|---|---|---|
| Wire Range: | 0.2-6mm2 (AWG32-AWG10) | Stripping Length: | Head 0 - 25mm Tail 0-25mm |
| Cutting Length: | 1mm-999999.9mm | Conduit Size: | 4/6/7/9/mm |
| Warranty: | 12 Months | Weight: | 30 Kg |
| Size: | 500*460*360 Mm | Display Method: | Chinese Or English |

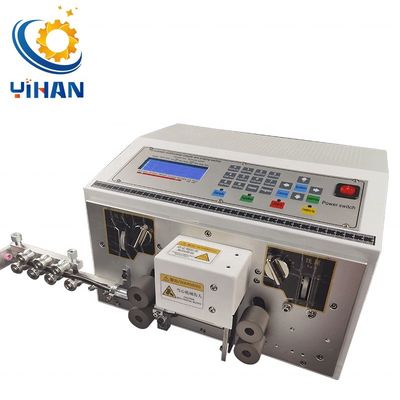

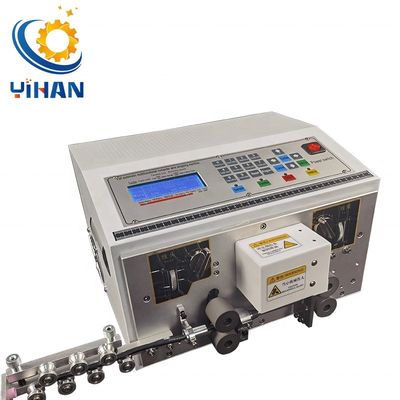

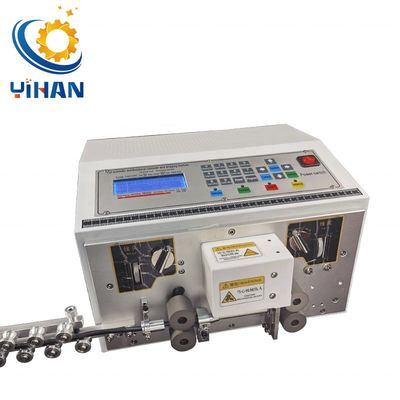

Automatic Full Computer Wire Stripping Machine adopt the advanced automation technology from Japan,Taiwan.
It is a kind of numerical control equipment.
Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and othervarious products of wire processing.

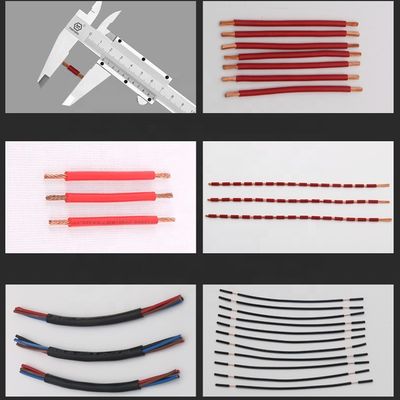

Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.
| Available Wire Range : | 0.1-6mm2(32AWG-10AWG) |
| Stripping Length: | Head 0-25mm Tail 0-25mm |
| Conduit Diameter: | 4/6/8/9/mm |
| Cutting Length: | 1-99999mm |
| Cutting Tolerance: | ±(0.002*L)(L=Cutting Length) |

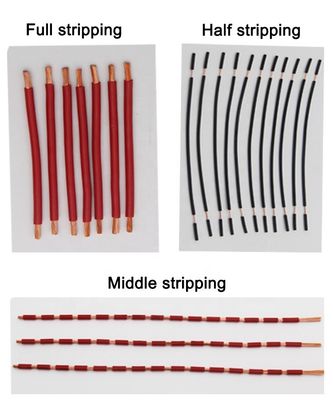

| Middle Stripping Section: | Max 15 |
| Speed: | 3000-6000pcs/h |
| Display Way: | English LCD Display |
| Drive Mode: | 4 Wheels Drive |
| Blade Material: | High Speed Steel |
| Appropriate Wire: | Single Wire,PVC tubes,PVC tubes |
| Power Supply: | 220V/50HZ 110V/60HZ(Customized) |
| Power Rating: | 400W |
| Size: | 500*460*360mm |
| Weight: | 32KG |
| Note: | Please tell us the type and size of the wire |
| Model | YH-800-02 | YH-800-04 | YH-800-06 | YH-800-10 |
| Photo | | | | |

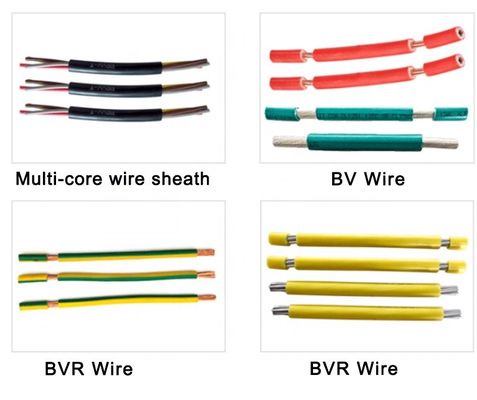

| Wire Range | 0.1-2.5MM2 BVR Wire | 0.1-4.5MM2 BVR Wire | 0.1-6MM2 BVR Wire | 0.1-10MM2 BVR Wire |
| Max Conduit OD | Φ5 | Φ6 | Φ8 | Φ10 |
| Stripping Length | Head 0-25 mm | Head 0-25 mm | Head 0-25 mm | Head 0-25 mm |
| Tail 0-80 mm | Tail 0-80 mm | Tail 0-80 mm | Tail 0-25mm | |
| Cutting Length | 1-99999mm | 1-99999mm | 1-99999mm | 1-99999mm |
| Avaible Wire | 0.1-2.5MM2 BVR Wires | 0.1-4mm2 BVR Wires | 0.5-6mm2 BVR Wires |
1.0-10MM2 BVR Wire |
| Model | YH-800-16 | YH-800-16D | We can produce the machine according to customer's requirement,please tell me your wire size and type before place an order
|
| Wire Range | 0.1-16MM2 BVR Wire | 0.1-16MM2 BVR/BV Wire | |
| Max Conduit OD | Φ15 | Φ15 | |
| Stripping Length | Head 0-20mm | Head 0-20mm | |
| Tail 0-80mm | Tail 0-80mm | ||
| Cutting Length | 1-99999mm | 1-99999mm | |
| Available Wire | 0.5-16MM2 BVR Wire | 0.1-25mm2 BVR Wire |
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund within 7 days after customer received product(customer need to pay for the Return shipping fee
