Product Details:
|
| Usage: | Cutting & Stripping | Type: | YH-8030 |
|---|---|---|---|
| Power Supply: | AC220V/110V/50HZ/60HZ | Stripping Range: | 1-30mm2 |
| Max Wire Diameter: | 16mm | Stripping Length: | Head 1-190mm,tail 1-80mm |
| Cutting Length: | 1-9999.9mm | Size: | 840*540*610 Mm |
| Weight: | 118kg | Display Method: | Chinese Or English Interface Display |
| Pressure: | 0.4-0.6Mpa |

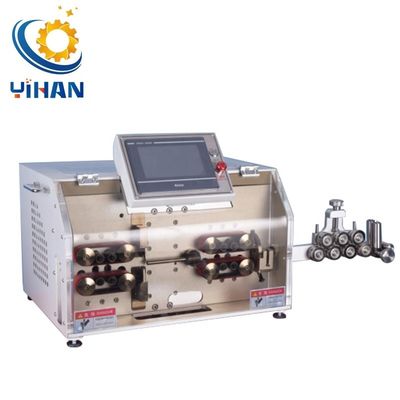

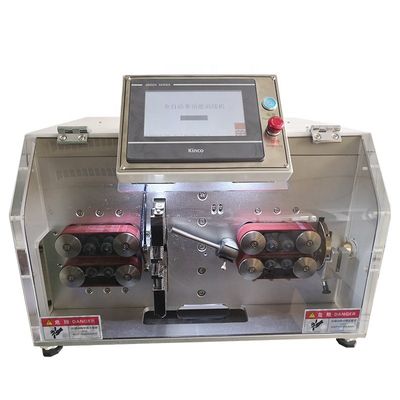

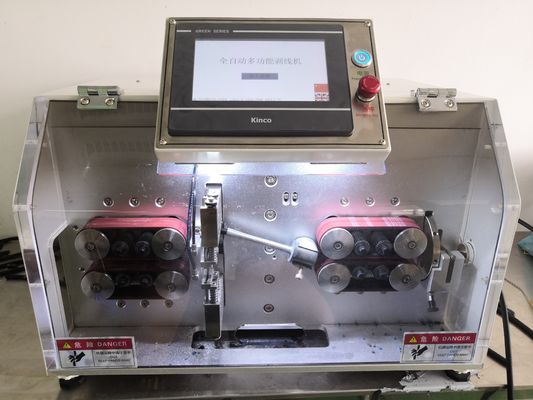

This machine uses a belt to feed the cable, and the cable has no embossing or scratches.
This machine uses 16-wheel drive, silent hybrid stepping motor, servo tool post, precise length and stable machine.
This machine is suitable for cables with a maximum wire diameter of 16mm and 1-30mm2.
The front full stripping length is 1-190mm, the front half stripping is 1-1500mm.
The Tail end full stripping length is 1-80mm, and the Tail end half stripping is 1-500mm.
| Model | YH-8030 |
| Machine Dimension | 600mm×500mm×400mm |
| Packed Weight | 120kg |
| Display method | 7-inch touch screen ,Chinese or English interface display |
| Power supply | AC220/110V/60/50Hz |
| Wire Outer diameter | Φ16 (1-30mm2 Wire) |
| Stripping length | Front :Full Stripping 1-190mm Half Stripping1-1500mm |
| Tail : Full Stripping 1-80mm Half Stripping 1-500mm | |
| Cutting length | 1-9999.9mm |
| Maximum guide tube diameter | Φ16mm |
| Cutting precision | ± 0.002*L |
| Productivity | 2000pcs/h(according to the cutting length) |
| Applicable wire | BVR Wire |
| Pressure | 0.4-0.6Mpa |
| Driving mode | 16-wheel driving, servo tool holder |
| Storage capacity | 60 kinds of data cable processing |
| Working environment | 0-45 degrees,dry vibration-free work bench |
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund within 7 days after customer received product(customer need to pay for the Return shipping fee
