Product Details:
|
| Usage: | Cutting & Stripping | Conductor Cross-section: | 0.1-4 Mm2 (32-12 AWG) |
|---|---|---|---|
| Power Supply: | AC220V/110V 50/60HZ | Cutting Length: | 1mm-99999.99mm |
| Cutting Length Tolerance: | 0.002*L | Stripping Length: | Head 0 - 25mm Tail 0-25mm |
| Wire Range: | OD 1-4.6mm (customizeable) | Productivity: | 2000-5000pcs/h |
| Noise Level: | < 70 DB(A) | Size: | 510*470*360 |
| Weight: | 25KG | Port: | Shenzhen |

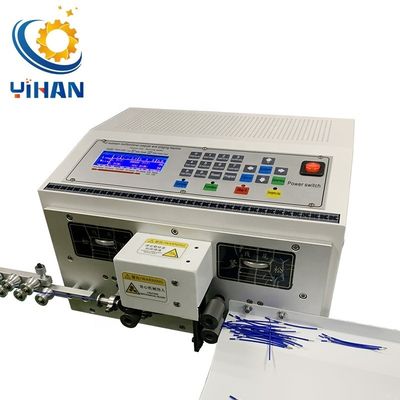

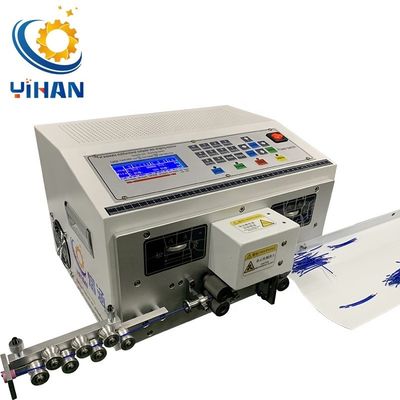

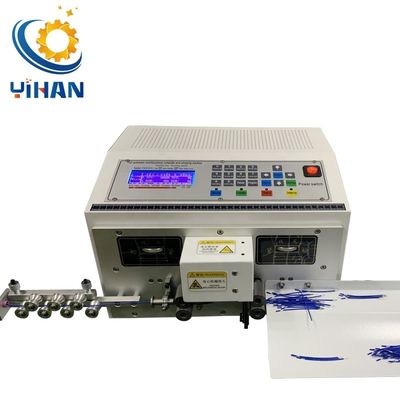

| Model | YH-04A |
| Wire material | PVC, fiberglass etc. |
| Conductor cross-section | 0.1 - 4 mm² (32 - 12 AWG) |
| Cutting length | 1 - 99999 mm |
| Cutting length tolerance | 0.002*L |
| Stripping length | Side I: 0 - 25 mm Side II: 0 - 25 mm |
| Wire Diameter | 0-8mm |
| Productivity | 2000-5000pcs/h |
| Noise level | < 70 dB(A) |
| Power supply | 110, 220 V (50 - 60 Hz) |
| Power | 200W |
| Weight | 25KG |
| Size | 510*470*360MM |
| | |
