Product Details:
|
| Usage: | Cutting & Wingding & Tying & Measuring | Wire Diameter: | 1-8mm(0.040-0.315 Inch) |
|---|---|---|---|
| Winding Speed: | 1-10 Laps / Sec | Inner Diameter Of Finished Product: | 50-280MM |
| Outer Diameter Of Finished Product: | <350MM | Tying Wire Length: | 120-200MM |
| Cable Tie: | Rubber Wrapped Iron Tie | Size: | 800*450*1000MM |
| Weight: | 230kg | Load Weight: | 2.5kg |
| Winding Fixture: | Can Be Customized | Port: | Shenzhen |

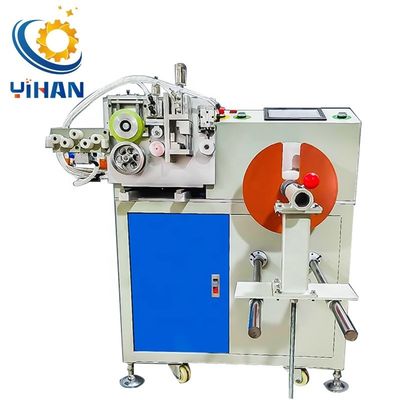

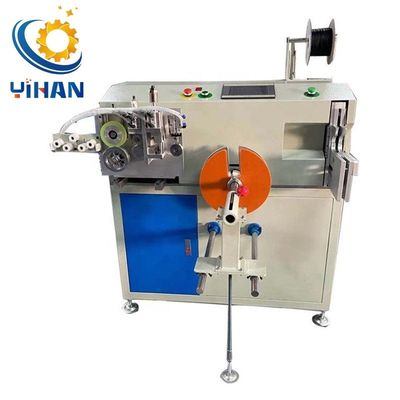

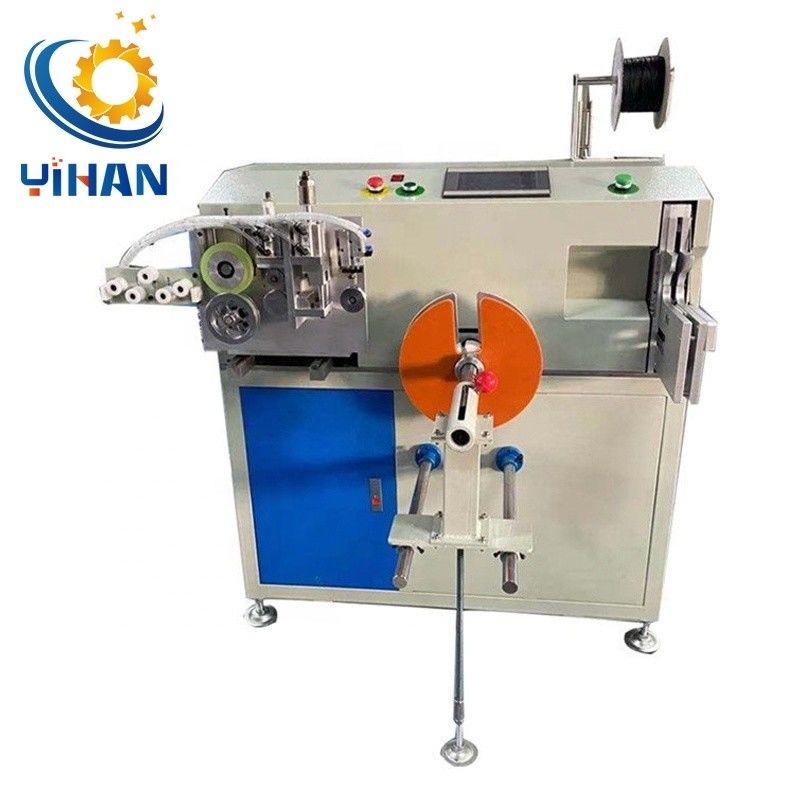

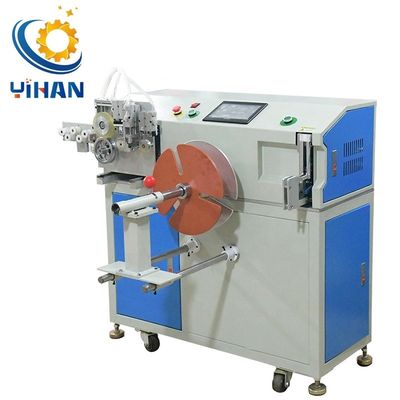

Fully Automatic Cable Wire Winding Coiling and Cutting Tying Machine with Length Measurement
1.YH-DMZ845 added functions of automatically metering, cutting based on
functions of winding and tying it orginally has.
2. Equipped with four motors for winding cable
3. Use PLC computer programmed touch screen to control metering length, cable tie length, automatically cutting cable tie, cable tie twisted together.
4. Can set how many times of tying round the cable coil and winding speed arbitrarily.

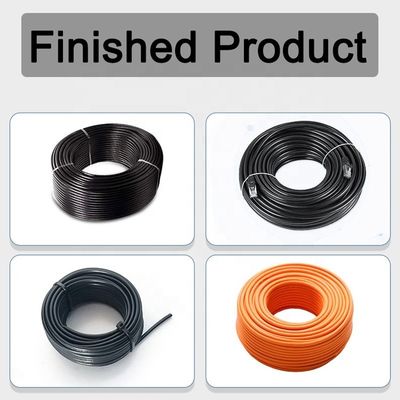

Suitable for winding AC power cable, DC power cable, USB cable, video cable, HDMI cable etc tranffering cables and tying with rubber wrapped iron wire by twisting rubber wrapped iron wires together.
Also applicable for other products need to be tied, such as clothes hanger, bathroom hose industries etc.
| Outer Diameter of Winding Dish | 350MM (Customizable Other Size) |
| Cutting Diameter | <8MM |
| Tying Wire Length | 120-200MM |
| Cable Tie | Rubber Wrapped Iron Wire |
| Suitable Coil Diameter for Tying | φ18-45MM(Customized Other Size) |
| Cable coil Inner diameter | 50-280mm |
| Loading Weight of Winding Wire | <2.5KG |
| Efficiency | 1-10 Circle/s |
| Voltage | 220V 50/60HZ |
| Rated Power | <2500W |
| Size | L1000*W450*H800MM |
| Weight | 230KG |
| Model | YH-M845 | |
| Wire Diameter | 1-8MM | |
| Finished Product Inner Diameter | 50-200MM | |
| Finished Product Outer Diameter | <280MM | |
| Loading Weight of Wire | <1.5KG | |
| Winding Speed | 1-13 Circles/S | |
| Power Supply | 110V/220V 50-60HZ | |
| Power | <200W | |
| Weight | About 40KG | |
| Size | L500*W300*H400MM |
| Model | YH-MZ845 | |
| Wire Diameter | 1-8MM | |
| Finished Product Inner Diameter | 50-200MM | |
| Finished Product Outer Diameter | <280MM | |
| Tying Diameter | 18-45MM | |
| Cable Tie Length | 120-190MM | |
| Loading Weight of Wire | <1.5KG | |
| Winding Speed | 1-13 Circles/S | |
| Power Supply | 110V/220V 50-60HZ | |
| Power | <200W | |
| Weight | About 80KG | |
| Size | 830*300*550MM |
| Model | YH-DM845 | |
| Outer Diameter of Winding Dish | 350MM(Customizable Other Size) | |
| Wire Diameter | 1-8MM | |
| Finished Product Inner Diameter | 50-280MM | |
| Finished Product Outer Diameter | <350MM(Customizable Other Size) | |
| Loading Weight of Wire | <2.5KG | |
| Winding Speed | 1-10 Circles/S | |
| Power Supply | 110V/220V 50-60HZ | |
| Power | <2500W | |
| Weight | About 230KG | |
| Size | 1000*450*800MM |
