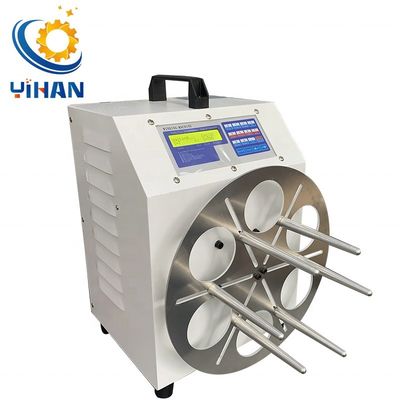

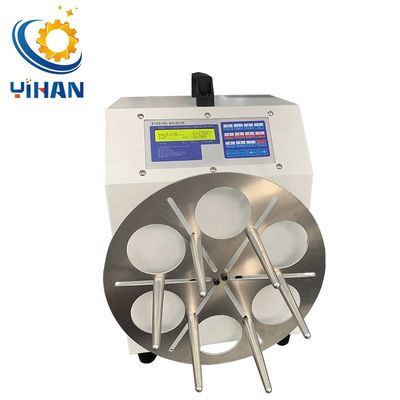

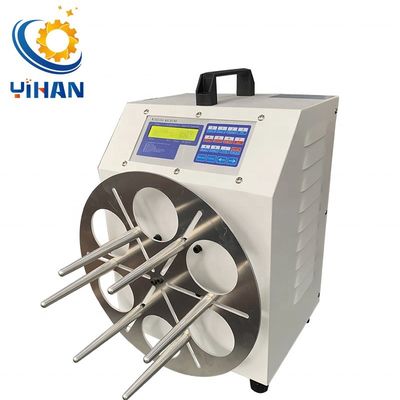

Product Details:
|
| Usage: | WINDING | Name: | Wire Coil Winding Machine |
|---|---|---|---|
| Power: | AC220V 50HZ /60HZ | Power Rating: | 400W |
| Spindle Speed: | 10-550 Rpm (continuously Adjustable) | Diameter Of Winding Reel: | 300mm |
| Number Of Winding Rods: | Default 2 Rods (maximum 6 Rods) | Shape After Winding: | O Or 8 Shape |
| Net Weight: | 20kg | Size: | 485*435*400mm |
| Winding Diameter And Length: | For Example 0D 5MM, Length100m |
1: This machine is suitable for the winding of wires and cables, etc. It can be wound into a circle, a figure of eight, a pie, etc.
2: With winding reels of different outer diameters and different numbers of winding rods, it can be wound into circles of different sizes, figure-eights and other shapes.

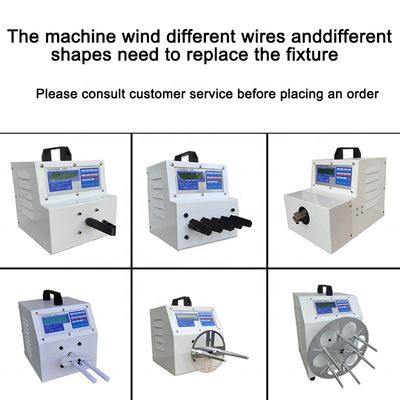

3: Customized different winding jigs can be wound into different effects. If the USB data cable has the most winding changes, it can be wound. We have a variety of fixtures to choose from.
4: Both the foot switch and the panel buttons can control the operation of the machine.
5: Models can be customized according to different winding needs of customers.
6: Choose different models according to different wire diameters and lengths

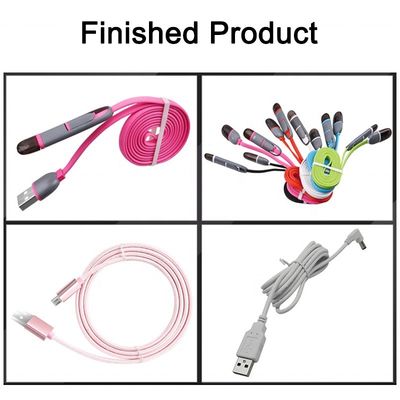

This machine is suitable for AC power cords, DC power cords, USB cables, sheathed cables and HDMI high-definition cables and other wires to be rounded or 8-shaped, but for different winding requirements, the fixture needs to be replaced. Before placing an order, the customer Need to inform us of wire size and winding requirements. Communicate which model can meet customer requirements.

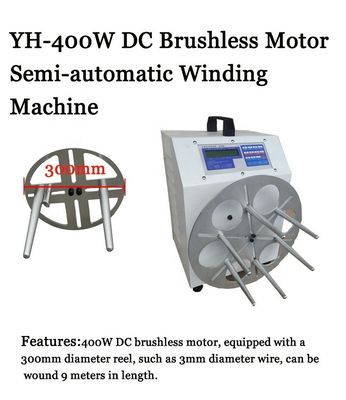

| Name: | YH-400W Semi-automatic winding machine |
| Power supply: | 220 V/110V |
| Power: | 400W |
| Weight: | 20KG |
| Diameter of winding reel: | 300MM |
| Number of winding rods: | Default 2 roots (Max 6 roots) |
| Shape after winding: | "0" or "8"shape |
| Can the winding fixture be installed: | Yes |
| Number of coils: | Can be set |
| Rotating speed: | Can be set |
| Braking method: | Set brake |
| Can the output be counted: | Yes |
| Forward and reverse: | Can be switched |
| Winding diameter and length: | Consult customer service for specific situations, usually within 5mm of outer diameter and within 100 meters of winding |
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund within 7 days after customer received product(customer need to pay for the Return shipping fee
