Product Details:
|
| Usage: | Winding & Tying | Name: | Winding Machine |
|---|---|---|---|
| Power: | AC220V 50HZ /60HZ | Power Rating: | 200W |
| Binding Diameter: | 15-50mm | Cable Tie Length: | 120-220mm |
| Winding Shape: | "8" Or Round | Around The Circle Diameter: | 50-200mm(can Be Adjusted, Can Be Customized) |
| Number Of Coils: | 3-5 Circles Recommend, Set By Yourself | Net Weight: | 26kg |
| Size: | 360*500*330mm |

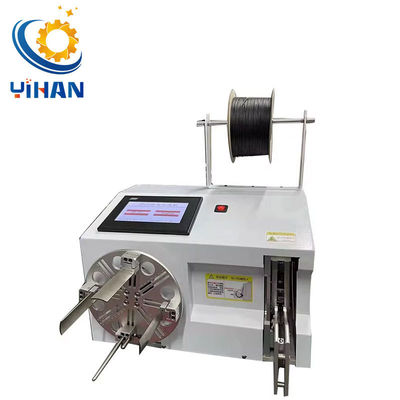

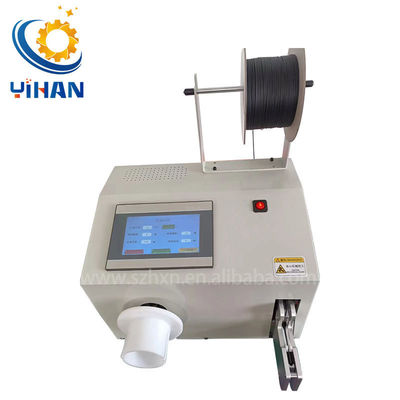

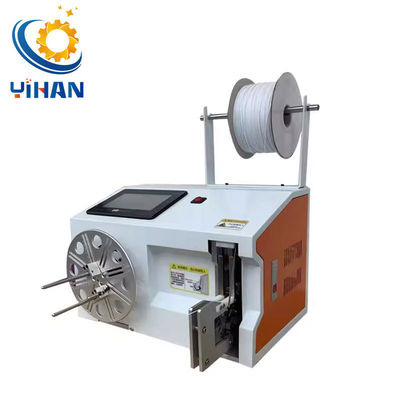

Automatic low price electric motor copper wire coil winding and binding machine for sale
FEATURE:
1.This machine is suitable for AC power cord, DC power cord,USB cable, sheathed cable andHDMI high-definition cable and other types of transmission lines using encapsulated core twist tied into bundle, can also be used to tape and other sealing plastic bag cores.
2.This machine can reduce employee fatigue strength, improve working efficiency, save cable ties and so on.
3.Employees simply put the wires on the port it will automatically winding,then putting these wires around the Norse mouth,the machine will automatically norse.The machine can set binding wire length and number of laps,count the yield .
4.The machine adopts PLC control program , text display for parameter setting, easy to operate.Adjusting space, replacement of fixtures is very convenient, ("8" -shaped tying, tying round universal,large range of bundled,widely used.)
5.Low cost and high efficient
| Model | YH-5-35WZ | YH-15-50WZ |
| Function | Winding & Tying | Winding & Tying |
| Winding shape | "8" and Circle shape | "8" and Circle shape |
| Winding speed | Adjustable | Adjustable |
| Tying speed | 0.6s each time | 0.6s each time |
| Inside diameter of a circle (customized available) | 50-200MM | 50-200MM |
| Tie Wire bundle diameter(Binding diameter) | 5-35mm | 15-50mm |
| Tying line length(for reference) | 75-150mm | 120-220mm |
| Weight | 23kg(After packing 36KG) | 28kg(After packing 40kg) |
| Dimension | 550*520*500mm | 550*545*500mm |
| Model | YH-5-35DZ | YH-15-50DZ |
| Function | Tying | Tying |
| Tying speed | 0.6s each time(Adjust) | 0.6s each time(Adjust) |
| Tying range | 5-35mm | 15-50mm |
| Tying line length(for reference) | 75-150mm | 120-220mm |
| Weight | 13kg(After packing 23KG) | 15kg(After packing 28kg) |
| Dimension | 360*500*330mm | 360*550*330mm |
