Product Details:
|
| Usage: | Multifunctional, Winding | Product Name: | Automatic Tape Winding Machine |
|---|---|---|---|
| Application: | Tape Winding Wire | Function: | Cable Wire Taping Binding |
| Wire Taping Diameter: | 0-30mm | Tape Width: | 5-25mm(Can Be Customized) |
| Tap Outside Diameter: | Within 100mm | Tape Roll Inner Diameter: | 38 Or 32mm(Please Advise Other Sizesin Advance) |
| Size: | 560*500*350mm | Weight: | 65kg |
Automatic cable harness wrap tape winding machine factory spot

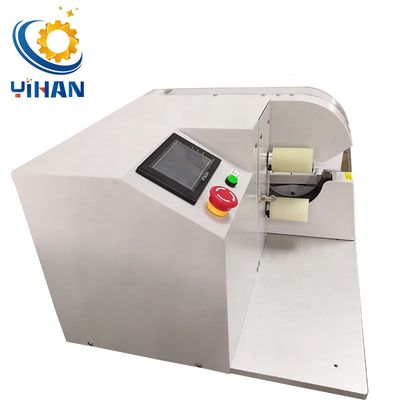

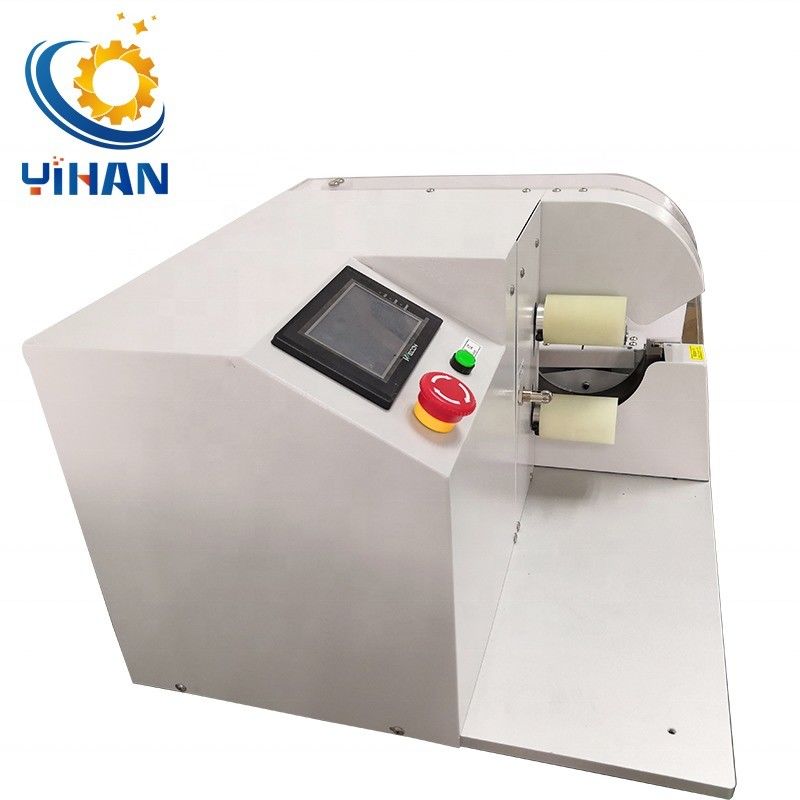

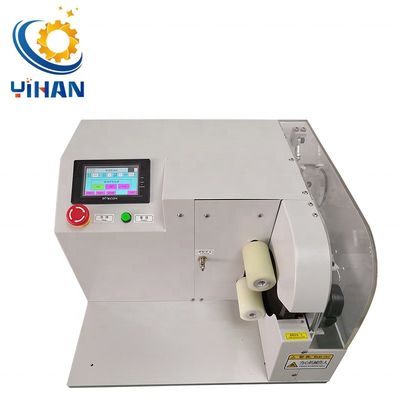

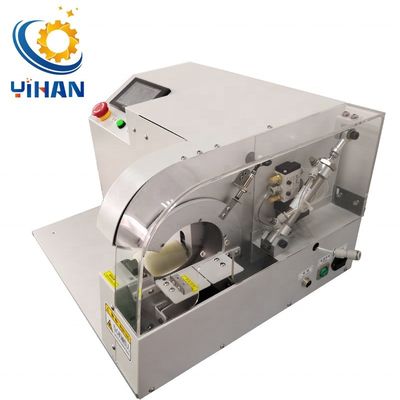

YH-30A Automatic cable harness wrap tape winding machine factory spot
| Product Name | Automatic cable harness wrap tape winding machine |
| Model | YH-30A |
| Applicable to maximum wire diameter | Max Φ30mm |
| Tape outside diameter | Max Φ100mm |
| Tape roll inner diameter | Φ32mm or Φ38mm (Please advise other sizesin advance) |
| Tape width | 5-25mm(Other sizes are customizable) |
| Dimension | 550*500*350mm |
| Winding length | Infinite |
| Main engine rate of revolution | 4500RPM |
| Net Weight | 48KG |
| Display method | Chinese or English interface display |
| Power supply | AC220/250V/110v 50/60HZ |
| Winding length | Any require length |

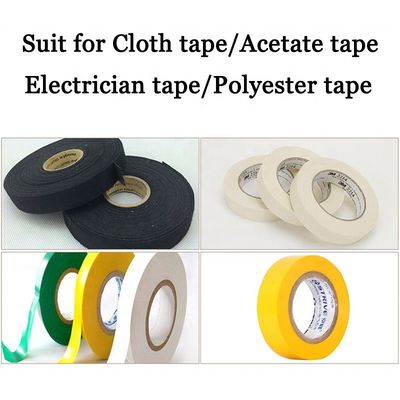

| Suitable for tape | flannelette, acetic acid cloth, electrical tape |
| Winding speed | Max 12R/S |
