80kg Automatic Cable Wire Harness Tape Wrapping Cable Spot Winding Twisting Machine

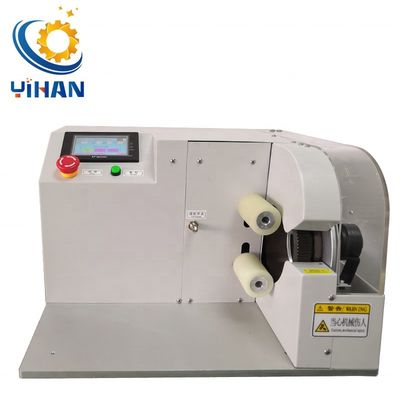

Large Image : 80kg Automatic Cable Wire Harness Tape Wrapping Cable Spot Winding Twisting Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Yihan
Model Number:	YH-40L

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$2,780.00/sets 1-2 sets
Packaging Details:	Wooden package

Contact Now

80kg Automatic Cable Wire Harness Tape Wrapping Cable Spot Winding Twisting Machine

Description

Usage:	Multifunctional, Winding	Product Name:	Automatic Tape Winding Machine
Application:	Tape Winding Wire	Function:	Cable Wire Taping Binding
Tape Width:	5-25mm	Wire Taping Diameter:	Max40mm
Tape Outside Diameter:	Max 170mm Or Max 120mm	Tape Roll Inner Diameter:	38mm 0r 76mm(Please Advise Other Sizes In Advance)
Size:	560540400mm	Weight:	80kg

80kg Automatic Cable Wire Harness Tape Wrapping Cable Spot Winding Twisting Machine 0

YH-40L Automatic cable wire harness tape wrapping cable spot winding twisting machine

Description:
For the wire and complex forming, provides automated placement and winding.

It not only can guarantee the high quality of the wiring harness, but also good value.
especially applicable for thick wiring harnesses. Small, quick, reliable, cost-effective and thus absolutely economical, the perfect machine for efficient and cost-effective production.

Feature:
High precision,Economical & user-friendly
Extremely low maintenance
easy operation

Product Description

Product Name	Automatic cable harness wrap tape winding machine
Model	YH-40L
Applicable to maximum wire diameter	Max Φ40mm
Tape outside diameter	Max Φ170mm(Applicable wire diameter: 3-25mm); Max Φ120mm(Applicable wire diameter: 3-40mm)
Tape roll inner diameter	Φ76mm or Φ38mm (Please advise other sizesin advance)
Tape width	5-25mm(Other sizes are customizable)
Dimension	400370320mm
Weight	48KG
Display method	Chinese or English interface display
Power supply	AC220/250V/50/60HZ
Winding length	Any require length
Suitable for tape	flannelette, acetic acid cloth, electrical tape
Winding speed	Max 12R/S

80kg Automatic Cable Wire Harness Tape Wrapping Cable Spot Winding Twisting Machine 3

Product show

80kg Automatic Cable Wire Harness Tape Wrapping Cable Spot Winding Twisting Machine 8
