Product Details:
|
| Usage: | Multifunctional, Winding | Product Name: | Automatic Tape Winding Machine |
|---|---|---|---|
| Application: | Tape Winding Wire | Function: | Cable Wire Taping Binding |
| Tape Width: | 5-25mm(Other Sizes Need To Be Customized) | Wire Taping Diameter: | 0-40mm |
| Size: | 650*520*400 | Tape Roll Inner Diameter: | 38mm Or 76mm(Please Advise Other Sizesin Advance) |
| Weight: | 76kg | Tape Outside Diameter: | Within170mm |

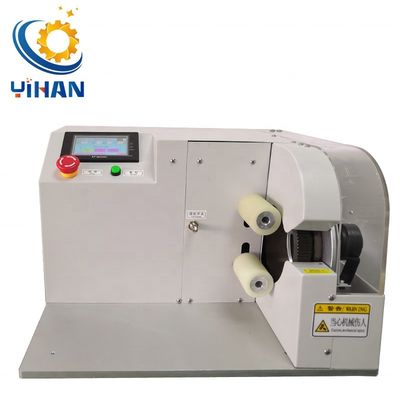

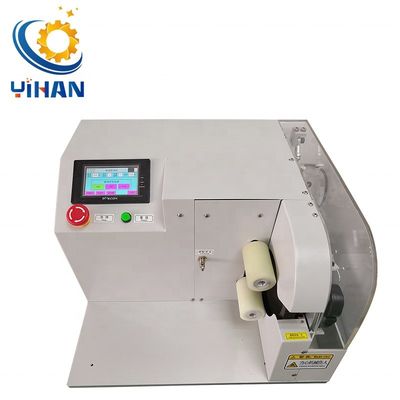

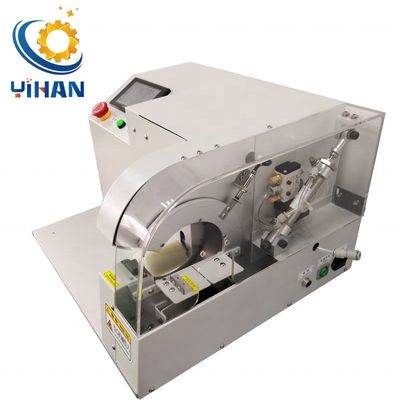

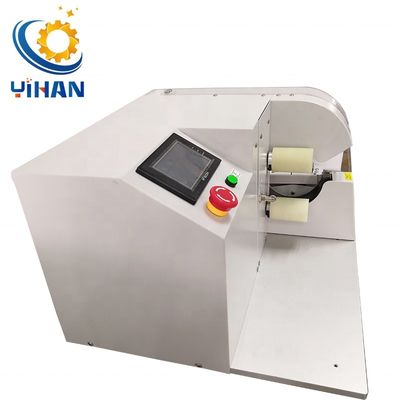

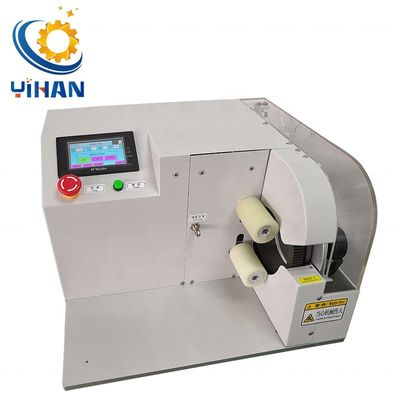

YH-55LJ Automatic cable harness wrap tape winding machine
| Product Name | Automatic cable harness wrap tape winding machine |
| Model | YH-55LJ |
| Applicable to maximum wire diameter | Max Φ40mm |
| Tape outside diameter | Max Φ170mm(Applicable wire diameter: 3-25mm); Max Φ120mm(Applicable wire diameter: 3-40mm) |
| Tape roll inner diameter | Φ76mm or Φ38mm (Please advise other sizesin advance) |
| Tape width | 5-25mm(Other sizes are customizable) |
| Dimension | 400*370*320mm |
| Weight | 55KG |
| Display method | Chinese or English interface display |
| Power supply | AC220/250V/50/60HZ |
| Winding length | Any require length |

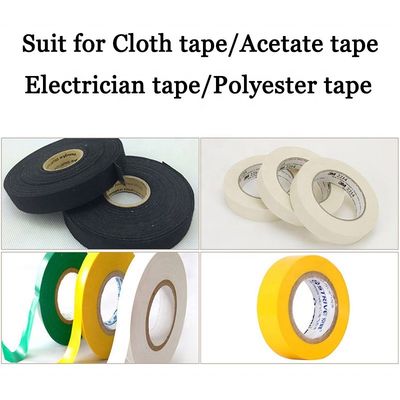

| Suitable for tape | flannelette, acetic acid cloth, electrical tape |
| Winding speed | Max 12R/S |
