Product Details:
|
| Usage: | Stranding, Stranding And Twisting | Model: | YH-AK20 |
|---|---|---|---|
| Main Shaft Direction: | Positive And Negative Reversible | Spindle Speed: | 300-7500 Adjustment |
| Strand Length: | 50-80mm | Number Of Storage: | 99kinds |
| Speed Rate: | 1500pcs/H | Maximum Winding Diameter: | 1.2mm |
| Number Of Windings: | 0.5-9999.9 Laps/circles | Size: | 280*200*200 |

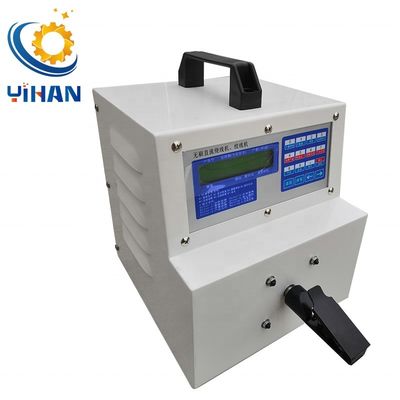

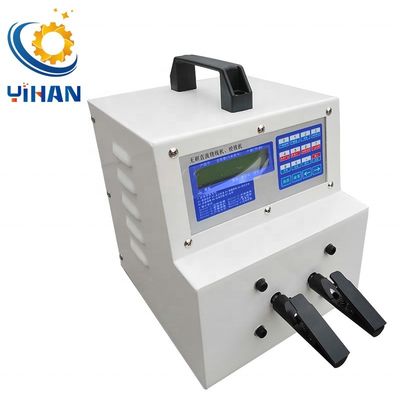

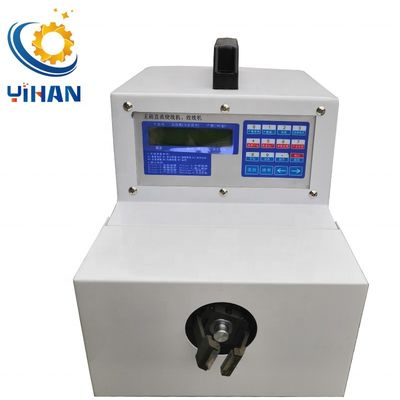

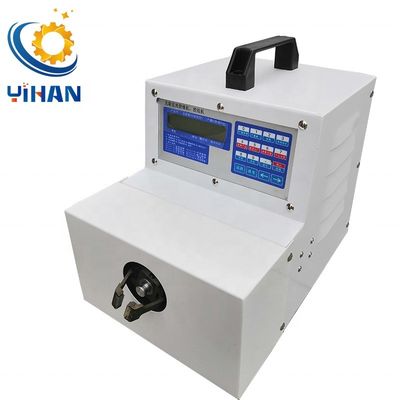

Automatic clamp stranding machine winding machine wire twisting tool YH-AK20 factory spot
Automatic clamp strangding machine wire twisting tool with strand length 50-80mm
FEATURE:
1. Mainly used for wire stranding and can choose the direction of rotation.
2. The automatic twisting machine has large torque,strong finished products and stable quality.
3. Using electronic control,easy to operate,can set the number of twisted turns,accurate and stable.
4. This machine has twisted wire and stranded wire function.The twisting wire strength can be customized from the governor.
The speed can be adjusted,the output of the twisted wire is even,and the speed of the twisted wire can be customized from the adjuster.
The direction of the strand can be selected(including the terminal is well or the contacts are worn)

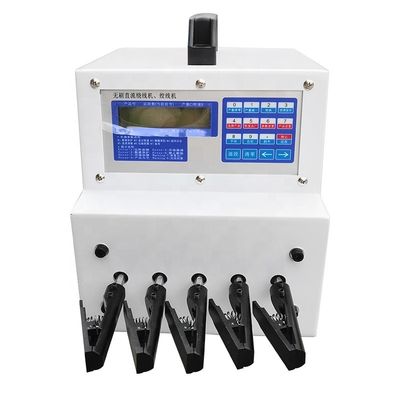

5.Can be customized as two,three axes and five axes.
| Model | YH-AK20 |
| Usage | Stranding and twisting |
| Main shaft direction | Positive and negative reversible |
| Spindle speed | 300-7500 adjustment |
| Strand length | 50-80mm |
| Number of storage | 99kinds |
| Speed rate | 1500pcs/H |
| Maximum winding diameter | 1.2mm (Φ20 skeleton) |
| Number of windings | 0.5-9999.9 laps/circles |
| Net weight | 10KG |
| Size | 280*200*200mm |
| Supply power | 220V/50HZ |
| Rated power | 90W |
