Product Details:
|
| Usage: | Stripping & Cutting | Type: | YH-H812 |
|---|---|---|---|
| Power Supply: | AC220V/110V/50HZ/60HZ | Wire Range: | OD 1-12mm |
| Stripping Length: | Head 0 - 120mm Tail 0-70mm | Size: | 470*450*340mm |
| Display Method: | English Interface Display | Weight: | 40kg |
| Cutting Length: | 1-9999mm | Cutting Tolerance: | Modifiable |
| Warranty: | 3 Years |

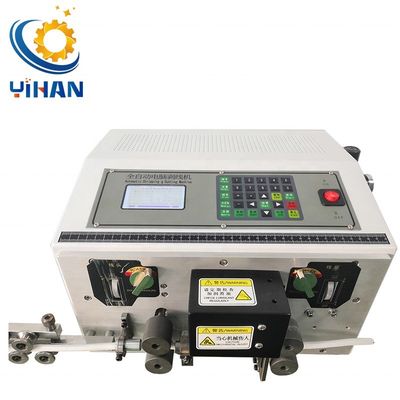

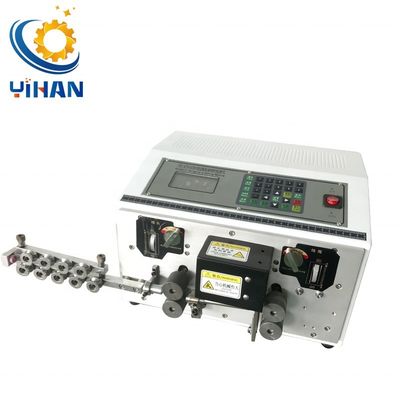

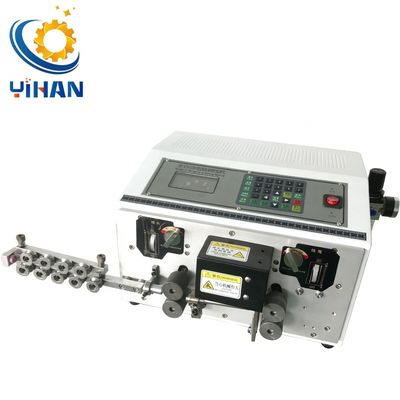

Single line automatic computer wire stripping machine
Features:
1.The machine uses the latest 32 intelligent control system, Chinese and English switching liquid crystal display, button operation, can store hundreds of pieces of information, called at any time, fast efficient.
2.Compatible with the general features of 220 # wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.

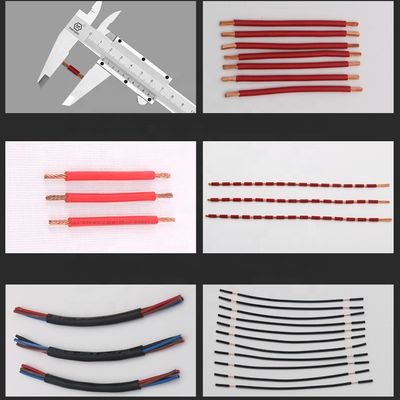

3.Mainly used for electronic wire, BVR line, RV wire, electronic wire, silicone wire, Teflon wire, glass fiber of cotton, isolated lines, coaxial, sheathed cable, etc..
4.Automatic cutting, stripping, semi-stripping,multi-segment stripping , twisting function completed at one time, can instantly transform wire specifications and dimensions,it’s very economic.
5.The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.
| Model | YH-H812 |
| Dimension | 470mm×450mm×340mm |
| Weight | 40kg |
| Display method | Chinese or English interface display |
| Power supply | AC220/50Hz |
| Capacity | 550W |
| Cutting length | 1mm---99999mm |
| Cutting Tolerance | Modifiable |
| Peeling length | Head 1-120mm Tail 0.1-70mm (According to the wire) |
| Applicable wire core area | External diameter 1-8mm |
| Productivity | 2000-3000pcs/h(according to the cutting length) |
| Tool Material | Tungsten steel / white steel |
| Stripping speed | Fast |
| Cable outer diameter | Adjustable |
| Stripping quality | Excellent |
| Decimal precision | Yes |
| Drive mode | Four simultaneously drive |
| Stripping pressure adjustment | Adjustable |
| Speed adjustment | 0-9 |
| Stripping Mode | Long wire/short wire/Cable model/sheathed mode |
